Home / Pipe Fitting, 14 mm, Standard, Brass

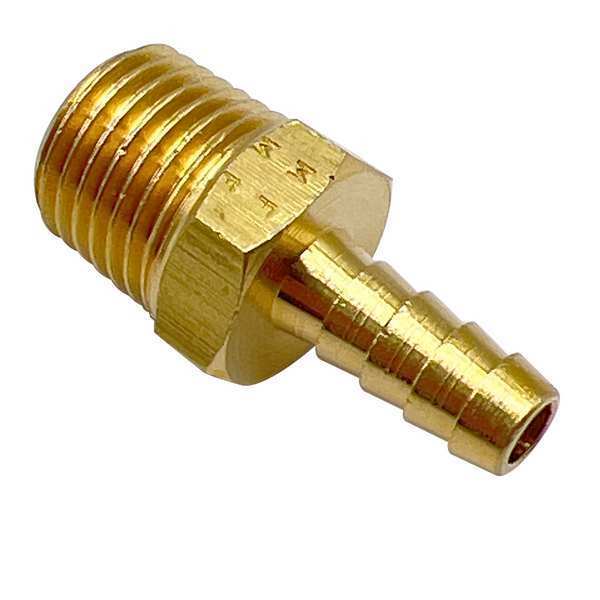

Pipe Fitting, 14 mm, Standard, Brass

Pipe Fitting, 14 mm, Standard, Brass

  • Legris
  • Raw Materials
  • Metric Brass Pipe Fitting, Fitting Side A Connection Type BSPT, Fitting Side B Connection Type Barbed, Fitting Side A Pipe Size 1/4 in, Fitting Side B Tube Inner Diameter 8 mm, Barb Style Standard, Fitting Material Brass, Material Grade CA360, Overall Length 31 mm, Specific Fitting Shape Straight Adapter, Application Automotive Process, Food Process, Packaging, Air, Robotics, Textile, Maximum Operating Pressure 250 barg, Maximum Operating Temperature 150 Degrees C
Web Price
$15.19 / each
Qty

Product Details

Automotive Process, Food Process, Packaging, Air, Robotics, Textile
Standard
Rubber
BSPT x Barbed
France
Barbed, Threaded
Brass
Brass
1/4 in
Adapter
BSPT
1/4 in
Barbed
8 mm
8 mm
8 mm
14 mm
CA360
250 barg
150 Degrees C
-40 Degrees C
31 mm
1
1/4 in
Straight Adapter
R 1/4
