Home / Pipe Fitting, 17 mm, Standard, Brass

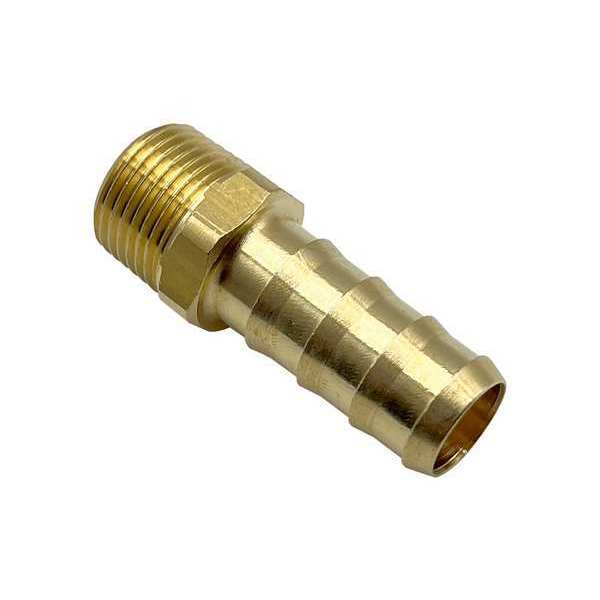

Pipe Fitting, 17 mm, Standard, Brass

Pipe Fitting, 17 mm, Standard, Brass

  • Legris
  • Raw Materials
  • Metric Brass Pipe Fitting, Fitting Side A Connection Type BSPT, Fitting Side B Connection Type Barbed, Fitting Side A Pipe Size 1/4 in, Fitting Side B Tube Inner Diameter 13 mm, Barb Style Standard, Fitting Material Brass, Material Grade CA360, Overall Length 45 1/2 mm, Specific Fitting Shape Straight Adapter, Application Automotive Process, Food Process, Packaging, Air, Robotics, Textile, Maximum Operating Pressure 100 barg, Maximum Operating Temperature 150 Degrees C
Web Price
$8.74 / each
Qty

Product Details

Automotive Process, Food Process, Packaging, Pneumatics, Robotics, Textile
Standard
Rubber
France
Barbed, Threaded
Brass
Brass
1/4 in
Adapter
BSPT
1/4 in
Barbed
13 mm
13 mm
13 mm
17 mm
CA360
100 barg
150 Degrees C
-40 Degrees C
45 1/2 mm
1
Straight Adapter
R 1/4
