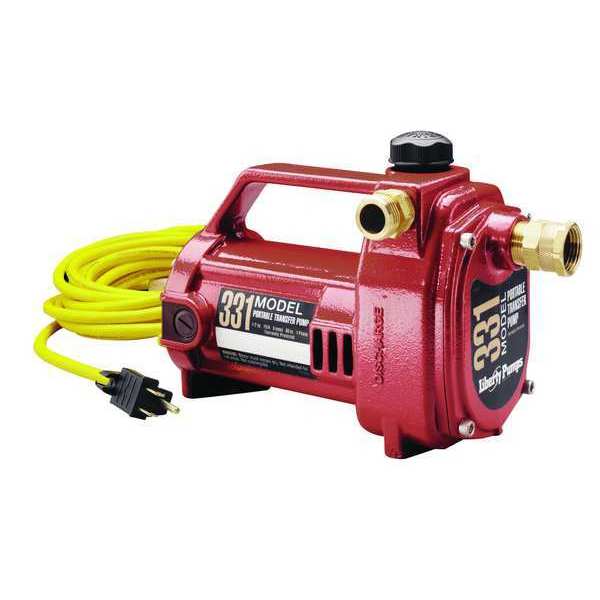

1/2 HP Centrifugal Pump

Home / 1/2 HP Centrifugal Pump

1/2 HP Centrifugal Pump

SKU
Brand Liberty Pumps
Categories Pumps
Description Utility Pump, Phase Single, Pump Housing Material Aluminum, Horsepower 1/2 hp, Nameplate Voltage 115V AC, Flow Rate @ 40 ft of Head (Maximum) 15 gpm, Flow Rate @ 60 ft of Head (Maximum) 10.33 gpm, Flow Rate @ 80 ft of Head (Maximum) 6.33 gpm, Maximum Feet of Head 105 ft, Compatible Intake Pipe Size 3/4 in, Intake Type GHT, Compatible Discharge Pipe Size 3/4 in, Motor Enclosure Open Dripproof, Flow Rate @ 5 ft of Head (Maximum) 23 gpm, Flow Rate @ 10 ft of Head (Maximum) 22 gpm
graingerSKU: 5YU12, mscSKU: , zoro_no: G0895535, mongo_id: 65bbe84022d7a989a98e66c0

Web Price

$380.63 / each

Qty

Product Details

Agency Compliance CSA

Amps 8.0 A

Bearing Type Ball

Best Efficiency Flow 10 gpm

Best Efficiency Head 65 ft

Best Efficiency Range GPM @ Head 9 to 13 gpm @ 48 to 71 ft

Compatible Discharge Pipe Size 3/4 in

Compatible Intake Pipe Size 3/4 in

Cord Length 20 ft

Country of Origin (subject to change) United States

Duty Intermittent

Duty Cycle Intermittent

Features Convenient On and Off Switch, Large Prime Plug with Internal Funnel Design for Easy Priming, One-Piece Cast Aluminum Pump and Motor Housing with Integral Carry Handle

Flow Rate @ 1 ft of Head (Maximum) 23.33 gpm

Flow Rate @ 10 ft of Head (Maximum) 22 gpm

Flow Rate @ 100 ft of Head (Maximum) 0 gpm

Flow Rate @ 120 ft of Head (Maximum) Not Applicable

Flow Rate @ 140 ft of Head (Maximum) Not Applicable

Flow Rate @ 15 ft of Head (Maximum) 21 gpm

Flow Rate @ 160 ft of Head (Maximum) Not Applicable

Flow Rate @ 180 ft of Head (Maximum) Not Applicable

Flow Rate @ 20 ft of Head (Maximum) 20 gpm

Flow Rate @ 200 ft of Head (Maximum) Not Applicable

Flow Rate @ 220 ft of Head (Maximum) Not Applicable

Flow Rate @ 240 ft of Head (Maximum) Not Applicable

Flow Rate @ 260 ft of Head (Maximum) Not Applicable

Flow Rate @ 280 ft of Head (Maximum) Not Applicable

Flow Rate @ 30 ft of Head (Maximum) 17 gpm

Flow Rate @ 300 ft of Head (Maximum) Not Applicable

Flow Rate @ 40 ft of Head (Maximum) 15 gpm

Flow Rate @ 5 ft of Head (Maximum) 23 gpm

Flow Rate @ 50 ft of Head (Maximum) 13 gpm

Flow Rate @ 60 ft of Head (Maximum) 10.33 gpm

Flow Rate @ 70 ft of Head (Maximum) 8.41 gpm

Flow Rate @ 80 ft of Head (Maximum) 6.33 gpm

Flow Rate @ 90 ft of Head (Maximum) 3.83 gpm

For Use With Potable Systems No

Frequency 60 Hz

GPH of Water @ 10 PSI 1,091

GPH of Water @ 15 PSI 936

GPH of Water @ 20 PSI 793

GPH of Water @ 25 PSI 654

GPH of Water @ 30 PSI 504

GPH of Water @ 35 PSI 342

GPH of Water @ 40 PSI 180

GPH of Water @ 5 PSI 1,222

GPM of Water @ 1 Ft. of Head 24.0

GPM of Water @ 10 Ft. of Head 22

GPM of Water @ 15 Ft. of Head 21

GPM of Water @ 20 Ft. of Head 19

GPM of Water @ 25 Ft. of Head 18

GPM of Water @ 30 Ft. of Head 17

GPM of Water @ 35 Ft. of Head 16

GPM of Water @ 40 Ft. of Head 15

GPM of Water @ 5 Ft. of Head 23

GPM of Water @ 50 Ft. of Head 13

GPM of Water @ 60 Ft. of Head 11

GPM of Water @ 70 Ft. of Head 8

GPM of Water @ 80 Ft. of Head 6.5

GPM of Water @ 90 Ft. of Head 4

Height 7 in

Horsepower 1/2 hp

Housing Material Cast Aluminum

HP_ 1/2 hp

Hz_ 60

Impeller Design Open

Impeller Material Thermoplastic

Impeller Type Open

Includes 3/4 in OD Brass Garden Hose Connectors, Plastic Suction Screen

Inlet 3/4 in GHT

Inlet Pressure 60 psi

Intake and Discharge Size 3/4 in , 3/4 in

Intake Type GHT

Length 9 3/4 in

Manufacturers Warranty Length 2 yr

Max. Case Pressure 100 psi

Max. Dia. Solids 1/8 in

Max. Head 105 ft

Max. Liquid Temp. 135 Degrees F

Max. Pressure 40 psi

Max. Specific Gravity 1.0

Maximum Feet of Head 105 ft

Motor Enclosure Open Dripproof

Motor Type Brushed

Nameplate Voltage 115V AC

NPSHr 60 psi

Outlet 3/4 in GHT

Overall Height 7 in

Overall Length 9.7 in

Overall Width 4.5 in

Package Quantity 1

Phase Single

Priming Manual

Pump Housing Material Aluminum

Seal Material Buna-N, Carbon, Ceramic

Seal Type Mechanical Cartridge

Shaft Material 300 Stainless Steel

Shut Off Pressure (Maximum) 45 psi

Solid Diameter (Maximum) 0.13 in

Specific Gravity (Maximum) 1

Standards CSA Certified

Suction Lift 15 ft

Suction Lift (Maximum) 15 ft

Voltage 115

Wetted Material Brass, Cast Aluminum, Stainless Steel, Thermoplastic

Wetted Materials Brass, Cast Aluminum, Stainless Steel, Thermoplastic

Width 4 1/2 in
