Home / Close-Coupled Pump Motor, 12.0/6.0A, 5 HP

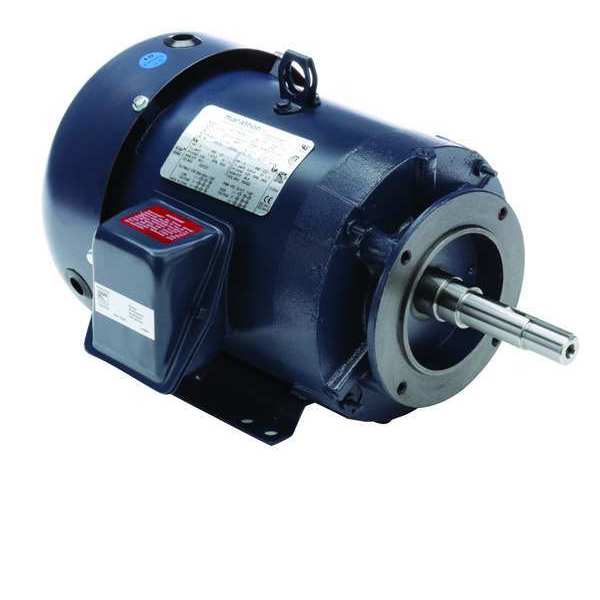

Close-Coupled Pump Motor, 12.0/6.0A, 5 HP

Close-Coupled Pump Motor, 12.0/6.0A, 5 HP

  • Marathon Motors
  • Pumps
  • Close-Coupled Pump Motor, Bolt Circle Dia. 5 7/8 in, CC Number CC003A, Conduit Box Location Exterior, Conduit Box Position F1, F2, Duty Cycle Continuous, Frame 184JM, Hz 60, Full Load Amps 12.4/6.2, Height 9 13/16 in, HP 5 hp, Ins. Class F, Inverter Rated Yes, Inverter Rating 10:1, Length Less Shaft 14 1/8 in, Max. Ambient Temp. 40 Degrees C, Motor Application Pump, Motor Bearings Ball, Motor Design 3-Phase, Motor Efficiency Group NEMA Premium Efficient
Web Price
$1,094.99 / each
Qty

Product Details

5 7/8 in
CC003A
Exterior
F1, F2
Mexico
Continuous
Continuous
184JM
Rolled steel
12.4/6.2
NEMA Premium(R) Rated
9 13/16 in
5 hp
60
F
Yes
10:1
14 1/8 in
40 Degrees C
Pump
Ball
3-Phase
NEMA Premium Efficient
Totally Enclosed Fan-Cooled
Steel
Horizontal
Face/Base
1.15
JM Threaded
CW/CCW
Close-Coupled Pump
None
3,525
A
1
88.5 %
18 3/8 in
1
Three
3,001-3,600
1 1/4 in
4 1/4 in
CE, CSA, UL Listed
No
No
230/460V AC
200-230/440V AC, 200-230/460V AC, 208-220/440V AC, 208-230/460V AC, 230/460V AC
90 lb
