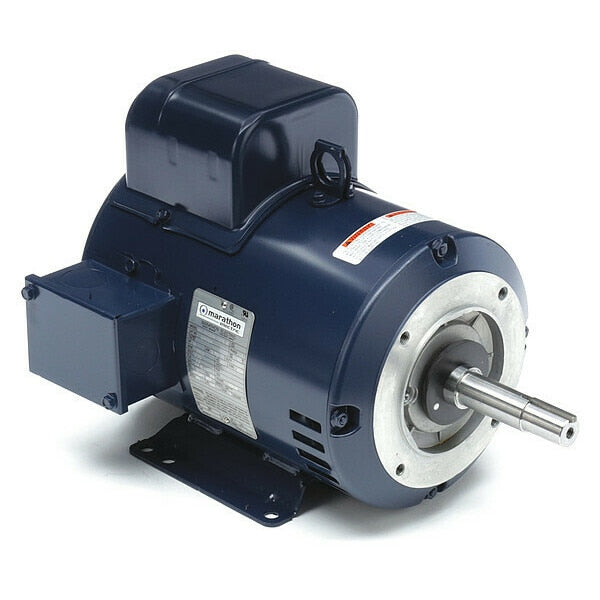

Close-Coupled Pump Motor5 HP, 3500 rpm

Home / Close-Coupled Pump Motor5 HP, 3500 rpm

Close-Coupled Pump Motor5 HP, 3500 rpm

SKU
Brand Marathon Motors
Categories Pumps
Description Close-Coupled Pump Motor, Bolt Circle Dia. 5 7/8 in, Conduit Box Position F1, Duty Cycle Continuous, Frame 184JM, Hz 60, Full Load Amps 22.0, Height 11 3/16 in, HP 5 hp, Ins. Class F, Inverter Rated No, Length Less Shaft 12 1/16 in, Max. Ambient Temp. 40 Degrees C, Motor Application Pump, Motor Bearings Ball, Motor Design Capacitor-Start/Run, Motor Efficiency Group Standard Efficient, Motor Enclosure Design Open Dripproof, Motor Frame Material Steel
graingerSKU: 26ZY37, mscSKU: , zoro_no: G5608863, mongo_id: 65bbe7753aaddbd5a909657f

Web Price

$1,109.99 / each

Qty

Product Details

Bolt Circle Dia. 5 7/8 in

Conduit Box Position F1

Country of Origin (subject to change) Mexico

Duty Continuous

Duty Cycle Continuous

Frame 184JM

Frame Material Rolled steel

Full Load Amps 22.0

Height 11 3/16 in

HP_ 5 hp

Hz_ 60

Ins. Class F

Inverter Rated No

Length Less Shaft 12 1/16 in

Max. Ambient Temp. 40 Degrees C

Motor Application Pump

Motor Bearings Ball

Motor Design Capacitor-Start/Run

Motor Efficiency Group Standard Efficient

Motor Enclosure Design Open Dripproof

Motor Frame Material Steel

Motor Mounting Position Horizontal

Motor Mounting Type Face/Base

Motor Service Factor 1.15

Motor Shaft Design JM Threaded

Motor Shaft Rotation CW/CCW

Motor Sub Application Close-Coupled Pump

Motor Thermal Protection None

Nameplate RPM 3,500

No. of Speeds 1

Nominal Efficiency 80 %

Overall Length 16 5/16 in

Package Quantity 1

Phase Single

RPM Range 3,001-3,600

Shaft Dia. 1 5/8 in

Shaft Length 4 1/4 in

Shaft Type JM Threaded

Standards CE, CSA, IP 22, NEMA JM, UL

Usable @ 200V No

Usable @ 208V No

Voltage 230V AC

Voltage Compatibility 115/200-230V AC, 115/208-230V AC, 115/230V AC, 120/240V AC, 200-230/440V AC, 200-230/460V AC, 208-220/440V AC, 208-230/277V AC, 208-230/460V AC, 230V AC, 240V AC, 277/230V AC

Weight 80 lb
