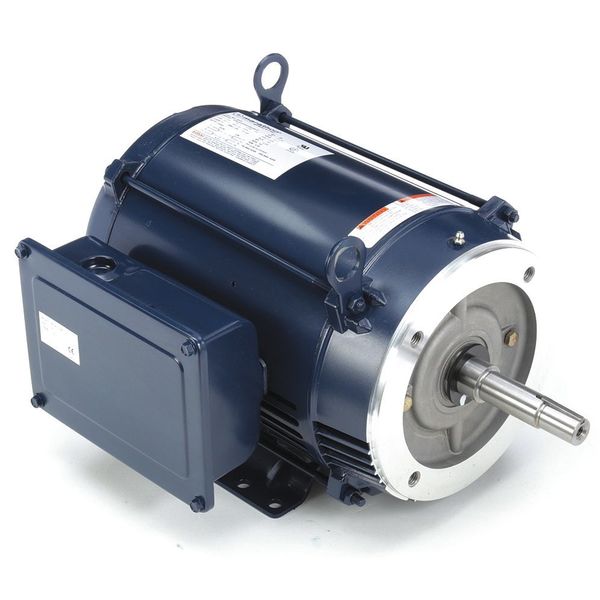

Close-Coupled Pump Motor7.5 HP, 3470 rpm

SKU
Brand Marathon Motors
Categories Pumps
Description Close-Coupled Pump Motor, Body Dia. 9.5 in, Bolt Circle Dia. 7 1/4 in, Conduit Box Location Exterior, Conduit Box Position F1, Duty Cycle Continuous, Frame 213JM, Hz 60, Full Load Amps 37.0, Height 11 in, HP 7 1/2 hp, Ins. Class B, Inverter Rated No, Length Less Shaft 4 3/16 in, Max. Ambient Temp. 40 Degrees C, Motor Application Pump, Motor Bearings Ball, Motor Design Capacitor-Start, Motor Efficiency Group Standard Efficient, Motor Enclosure Design Open Dripproof, Motor Frame Material Steel
graingerSKU: 26ZY39, mscSKU: , zoro_no: G5751724, mongo_id: 65bbe99422d7a989a9963844

Web Price

$1,218.74 / each

Qty

Product Details

Body Dia. 9.5 in

Bolt Circle Dia. 7 1/4 in

Conduit Box Location Exterior

Conduit Box Position F1

Country of Origin (subject to change) Mexico

Duty Continuous

Duty Cycle Continuous

Frame 213JM

Frame Material Rolled steel

Full Load Amps 37.0

Height 11 in

HP_ 7 1/2 hp

Hz_ 60

Ins. Class B

Inverter Rated No

Length Less Shaft 4 3/16 in

Max. Ambient Temp. 40 Degrees C

Motor Application Pump

Motor Bearings Ball

Motor Design Capacitor-Start

Motor Efficiency Group Standard Efficient

Motor Enclosure Design Open Dripproof

Motor Frame Material Steel

Motor Mounting Position Horizontal

Motor Mounting Type Face/Base

Motor Service Factor 1.15

Motor Shaft Design JM Threaded

Motor Shaft Rotation CW/CCW

Motor Sub Application Close-Coupled Pump

Motor Thermal Protection None

Nameplate RPM 3,470

NEMA Design L

No. of Speeds 1

Nominal Efficiency 78.5 %

Overall Length 18 7/16 in

Package Quantity 1

Phase Single

RPM Range 3,001-3,600

Shaft Dia. 7/8 in

Shaft Length 4 1/4 in

Shaft Type JM Threaded

Standards CE Mark, CSA Certified, UL Recognized

Usable @ 200V No

Usable @ 208V No

Voltage 230V AC

Voltage Compatibility 115/200-230V AC, 115/208-230V AC, 115/230V AC, 120/240V AC, 200-230/440V AC, 200-230/460V AC, 208-220/440V AC, 208-230/277V AC, 208-230/460V AC, 230V AC, 240V AC, 277/230V AC

Weight 106 lb
