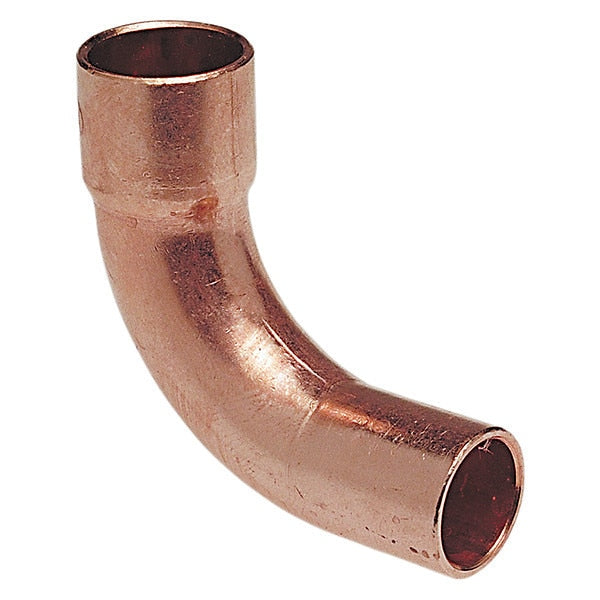

1-1/2" NOM FTG Copper 90 Degree Long Radius Elbow

Home / 1-1/2" NOM FTG Copper 90 Degree Long Radius Elbow

1-1/2" NOM FTG Copper 90 Degree Long Radius Elbow

SKU
Brand Nibco
Categories
Description Long Radius Elbow, Application Air, Gases, Potable Water, Fitting Side A Connection Type FTG, Fitting Side B Connection Type FTG, Fitting Side A Copper Tube Size 1 1/2 in, Fitting Side B Copper Tube Size 1 1/2 in, Fitting Material Wrot Copper, Fitting Side A Tube Outer Diameter 1 5/8 in, Fitting Side B Tube Outer Diameter 1 5/8 in, Maximum Operating Pressure 577 psi @ 200 Degrees F, Maximum Operating Temperature 400 Degrees F, Specific Fitting Shape 90 Degrees Long Radius Elbow
graingerSKU: 39R742, mscSKU: , zoro_no: G5149742, mongo_id: 65bbe80e22d7a989a98d4f87

Web Price

$36.73 / each

Qty

Product Details

Application Air, Gases, Potable Water

Basic Pipe Fitting Material Metal

Basic Pipe Fitting Shape Elbow

Connection Type FTG x FTG

Copper Tube Size 1 1/2 in x 1 1/2 in

Country of Origin (subject to change) United States

End Connection Type Fitting

Fitting Connection Type FTG x FTG

Fitting Copper Tube Size 1 1/2 in

Fitting Material Wrot Copper

Fitting Shape Elbow

Fitting Side A Connection Type FTG

Fitting Side A Copper Tube Size 1 1/2 in

Fitting Side A Tube Outer Diameter 1 5/8 in

Fitting Side B Connection Type FTG

Fitting Side B Copper Tube Size 1 1/2 in

Fitting Side B Tube Outer Diameter 1 5/8 in

For Tube OD 1 5/8 in x 1 5/8 in

For Tube Outside Diameter 1 5/8 in

Material Grade C12200

Max. Pressure 577 psi@200 Degrees F

Maximum Operating Pressure 577 psi @ 200 Degrees F

Maximum Operating Temperature 400 Degrees F

Minimum Operating Temperature 20 Degrees F

Outside Dia. 1-5/8

Package Quantity 1

Pipe Fitting Connection Type FTG x FTG

Pipe Fitting Material Wrot Copper

Resistance Properties Dezincification-Resistant

Specific Fitting Shape 90 Degree Long Radius Elbow

Specific Pipe Fitting Shape 90 Degrees Long Radius Elbow

Standards ASTM B75 Alloy C12200; Third-party Certified To NSF/ANSI 61 Annex G; ASME B16.22; MSS SP-104; NFPA 99 Health Care Facilities Gas And Vacuum Systems And The Compressed Gas Association, Pamphlet G4.1 (Medical Gas)

Stop and Shape 90 Degrees Long Radius Elbow

Temp. Range -20 Degrees to 400 Degrees F

Tube Fitting Material Wrot Copper

Tube Size 1-1/2
