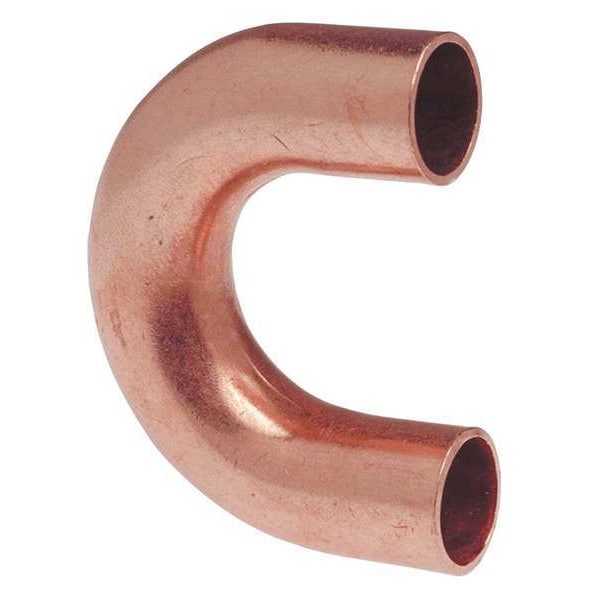

1-1/4" NOM C Copper Return Bend

SKU
Brand Nibco
Categories
Description Return Bend, Application Air, Gases, Potable Water, Fitting Side A Connection Type Cup, Fitting Side B Connection Type Cup, Fitting Side A Copper Tube Size 1 1/4 in, Fitting Side B Copper Tube Size 1 1/4 in, Fitting Material Wrot Copper, Fitting Side A Tube Outer Diameter 1 3/8 in, Fitting Side B Tube Outer Diameter 1 3/8 in, Maximum Operating Pressure 351 psi @ 200 Degrees F, Maximum Operating Temperature 400 Degrees F, Specific Fitting Shape Return Bend
graingerSKU: 39R743, mscSKU: , zoro_no: G5149575, mongo_id: 65bbe6a13aaddbd5a904156f

Web Price

$51.69 / each

Qty

Product Details

Application Air, Gases, Potable Water

Basic Pipe Fitting Material Metal

Basic Pipe Fitting Shape Elbow

Connection Type Cup x Cup

Copper Tube Size 1 1/4 in x 1 1/4 in

Country of Origin (subject to change) United States

End Connection Type Cup

Fitting Connection Type C x C

Fitting Copper Tube Size 1 1/4 in

Fitting Material Wrot Copper

Fitting Side A Connection Type Cup

Fitting Side A Copper Tube Size 1 1/4 in

Fitting Side A Tube Outer Diameter 1 3/8 in

Fitting Side B Connection Type Cup

Fitting Side B Copper Tube Size 1 1/4 in

Fitting Side B Tube Outer Diameter 1 3/8 in

For Tube OD 1 3/8 in x 1 3/8 in

For Tube Outside Diameter 1 3/8 in

Material Grade C12200

Max. Pressure 351 psi@200 Degrees F

Maximum Operating Pressure 351 psi @ 200 Degrees F

Maximum Operating Temperature 400 Degrees F

Minimum Operating Temperature 20 Degrees F

Outside Dia. 1-3/8 (4 C to C)

Package Quantity 1

Pipe Fitting Connection Type C x C

Pipe Fitting Material Wrot Copper

Resistance Properties Dezincification-Resistant

Specific Fitting Shape Return Bend

Specific Pipe Fitting Shape Return Bend

Standards ASTM B75 Alloy C12200; Third-party Certified To NSF/ANSI 61 Annex G; ASME B16.22; MSS SP-104; NFPA 99 Health Care Facilities Gas And Vacuum Systems And The Compressed Gas Association, Pamphlet G4.1 (Medical Gas)

Stop and Shape Return Bend

Temp. Range -20 Degrees to 400 Degrees F

Tube Fitting Material Wrot Copper

Tube Size 1-1/4
