Home / 1" FNPT Bronze Ball Valve 2-Way

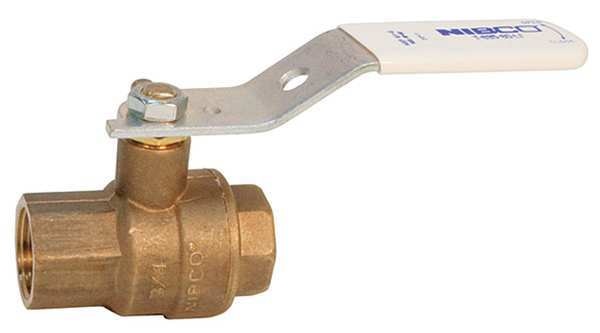

1" FNPT Bronze Ball Valve 2-Way

SKU
Brand Nibco
Categories
Description Ball Valve, Body Material Lead-Free Bronze, Body Style Inline, 2-Piece, Pipe Size 1 in, Connection Type FNPT x FNPT, Full Port, Max. Pressure 600 psi CWP, Max. Steam Pressure 100 psi WSP, Temp. Range up to 300 Degrees F, Ball Material Silicon Bronze, Seat Material PTFE, Stem Type Blowout Proof, Handle Type Lever, Handle Material Plated Steel, Stem Material Silicon Bronze, Body Seal Material EPDM, Hose I.D. 1 in
graingerSKU: 34CY87, mscSKU: , zoro_no: G8596341, mongo_id: 65bbee36526e052139af911d

Web Price

$74.74 / each

Qty

Product Details

Ball Material Silicon Bronze

Ball Valve Basic Body Material Bronze

Ball Valve Product Group Manual

Body Material Lead-Free Bronze

Body Seal Material EPDM

Body Style Inline

Connection Type FNPT x FNPT

Country of Origin (subject to change) Mexico

Features Non-Shock Cold Working Pressure, 41.4 Bar, Full Port, White Handle for Easy Lead-Free Identification, NIBCO Double-Oval Lead-Free Body Marking, Dezincification Resistant

General Connection Type Female NPT

Handle Material Plated Steel

Handle Type Lever

Hose I.D. 1 in

Max. Pressure 600 psi CWP

Max. Steam Pressure 100 psi WSP

Package Quantity 1

Pipe Size 1

Port Full

Seat Material PTFE

Standards MSS SP-110, NSF/ANSI 61 and NSF/ANSI 372

Stem Material Silicon Bronze
