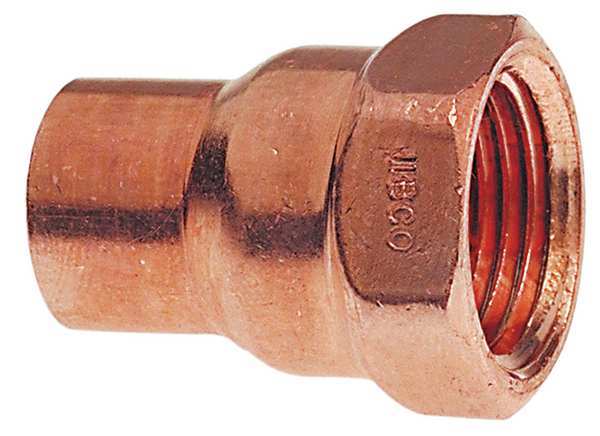

1" NOM C x 1-1/4" FNPT Copper Adapter

SKU
Brand Nibco
Categories
Description Adapter, Application Air, Gases, Potable Water, Fitting Side A Connection Type Cup, Fitting Side B Connection Type FNPT, Fitting Side A Copper Tube Size 1 in, Fitting Material Wrot Copper, Fitting Side B Pipe Size 1 in, Fitting Side A Tube Outer Diameter 1 1/8 in, Maximum Operating Pressure 351 psi @ 200 Degrees F, Maximum Operating Temperature 400 Degrees F, Specific Fitting Shape Reducing Adapter
graingerSKU: 39R577, mscSKU: , zoro_no: G5148281, mongo_id: 65bbe94a22d7a989a9947abd

Web Price

$29.86 / each

Qty

Product Details

Application Air, Gases, Potable Water

Basic Pipe Fitting Material Metal

Basic Pipe Fitting Shape Adapter

Connection Type Cup x FNPT

Copper Tube Size 1 in

Country of Origin (subject to change) United States

End Connection Type Cup, Threaded

Fitting Connection Type C x FNPT

Fitting Copper Tube Size 1 in

Fitting Material Wrot Copper

Fitting Pipe Size 1 in

Fitting Shape Adapter

Fitting Side A Connection Type Cup

Fitting Side A Copper Tube Size 1 in

Fitting Side A Tube Outer Diameter 1 1/8 in

Fitting Side B Connection Type FNPT

Fitting Side B Pipe Size 1 in

For Tube OD 1 1/8 in

For Tube Outside Diameter 1 1/8 in

Material Grade C12200

Max. Pressure 351 psi@200 Degrees F

Maximum Operating Pressure 351 psi @ 200 Degrees F

Maximum Operating Temperature 400 Degrees F

Minimum Operating Temperature 20 Degrees F

Outside Dia. 1-1/8

Package Quantity 1

Pipe Fitting Connection Type C x FNPT

Pipe Fitting Material Wrot Copper

Pipe Size 1 in

Pipe Size (Fittings) 1-1/4

Pipe Size - Pipe Fitting 1-1/4

Resistance Properties Dezincification-Resistant

Specific Fitting Shape Adapter

Specific Pipe Fitting Shape Adapter

Standards ASTM B75 Alloy C12200; Third-party Certified To NSF/ANSI 61 Annex G; ASME B16.22; MSS SP-104; NFPA 99 Health Care Facilities Gas And Vacuum Systems And The Compressed Gas Association, Pamphlet G4.1 (Medical Gas)

Stop and Shape Reducing Adapter

Temp. Range -20 Degrees to 400 Degrees F

Tube Fitting Material Wrot Copper

Tube Size 1
