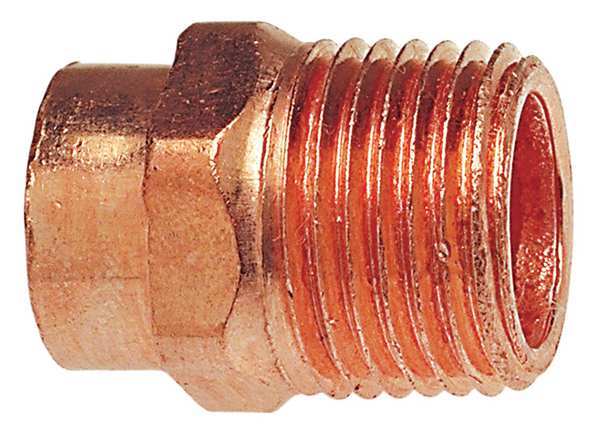

1" NOM C x 1/2" MNPT Copper Adapter

SKU
Brand Nibco
Categories
Description Adapter, Application Air, Gases, Potable Water, Fitting Side A Connection Type Cup, Fitting Side B Connection Type MNPT, Fitting Side A Copper Tube Size 1 in, Fitting Material Wrot Copper, Fitting Side B Pipe Size 1 in, Fitting Side A Tube Outer Diameter 1 1/8 in, Fitting Side B Tube Outer Diameter 5/8 in, Maximum Operating Pressure 395 psi @ 200 Degrees F, Maximum Operating Temperature 400 Degrees F, Specific Fitting Shape Reducing Adapter
graingerSKU: 39R612, mscSKU: , zoro_no: G5148552, mongo_id: 65bbe7e89a749db822762b22

Web Price

$22.49 / each

Qty

Product Details

Application Air, Gases, Potable Water

Basic Pipe Fitting Material Metal

Basic Pipe Fitting Shape Adapter

Connection Type Cup x MNPT

Copper Tube Size 1 in

Country of Origin (subject to change) United States

End Connection Type Cup, Threaded

Fitting Connection Type C x MNPT

Fitting Copper Tube Size 1 in

Fitting Material Wrot Copper

Fitting Pipe Size 1 in

Fitting Shape Adapter

Fitting Side A Connection Type Cup

Fitting Side A Copper Tube Size 1 in

Fitting Side A Tube Outer Diameter 1 1/8 in

Fitting Side B Connection Type MNPT

Fitting Side B Pipe Size 1 in

Fitting Side B Tube Outer Diameter 5/8 in

For Tube OD 1 1/8 in x 5/8 in

For Tube Outside Diameter 1 1/8 in, 5/8 in

Material Grade C12200

Max. Pressure 395 psi@200 Degrees F

Maximum Operating Pressure 395 psi @ 200 Degrees F

Maximum Operating Temperature 400 Degrees F

Minimum Operating Temperature 20 Degrees F

Outside Dia. 1-1/8 x 1/2

Package Quantity 1

Pipe Fitting Connection Type C x MNPT

Pipe Fitting Material Wrot Copper

Pipe Size 1 in

Pipe Size (Fittings) 1/2

Pipe Size - Pipe Fitting 1/2

Resistance Properties Dezincification-Resistant

Specific Fitting Shape Adapter

Specific Pipe Fitting Shape Adapter

Standards ASTM B75 Alloy C12200; Third-party Certified To NSF/ANSI 61 Annex G; ASME B16.22; MSS SP-104; NFPA 99 Health Care Facilities Gas And Vacuum Systems And The Compressed Gas Association, Pamphlet G4.1 (Medical Gas)

Stop and Shape Reducing Adapter

Temp. Range -20 Degrees to 400 Degrees F

Tube Fitting Material Wrot Copper

Tube Size 1
