Home / 1" NOM FTG Copper 90 Degree Long Radius Elbow

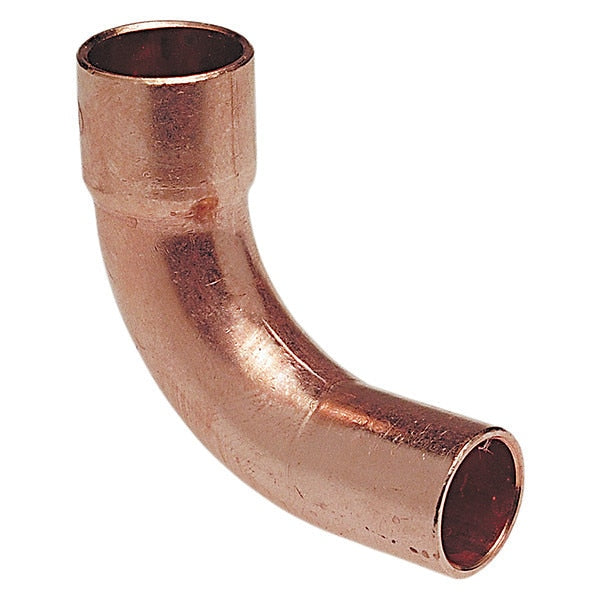

1" NOM FTG Copper 90 Degree Long Radius Elbow

SKU
Brand Nibco
Categories
Description Long Radius Elbow, Application Air, Gases, Potable Water, Fitting Side A Connection Type FTG, Fitting Side B Connection Type FTG, Fitting Side A Copper Tube Size 1 in, Fitting Side B Copper Tube Size 1 in, Fitting Material Wrot Copper, Fitting Side A Tube Outer Diameter 1 1/8 in, Fitting Side B Tube Outer Diameter 1 1/8 in, Maximum Operating Pressure 395 psi @ 200 Degrees F, Maximum Operating Temperature 400 Degrees F, Specific Fitting Shape 90 Degrees Long Radius Elbow
graingerSKU: 39R677, mscSKU: , zoro_no: G5149173, mongo_id: 65bbe99422d7a989a9964755

Web Price

$17.69 / each

Qty

Product Details

Application Air, Gases, Potable Water

Basic Pipe Fitting Material Metal

Basic Pipe Fitting Shape Elbow

Connection Type FTG x FTG

Copper Tube Size 1 in x 1 in

Country of Origin (subject to change) United States

End Connection Type Fitting

Fitting Connection Type FTG x FTG

Fitting Copper Tube Size 1 in

Fitting Material Wrot Copper

Fitting Shape Elbow

Fitting Side A Connection Type FTG

Fitting Side A Copper Tube Size 1 in

Fitting Side A Tube Outer Diameter 1 1/8 in

Fitting Side B Connection Type FTG

Fitting Side B Copper Tube Size 1 in

Fitting Side B Tube Outer Diameter 1 1/8 in

For Tube OD 1 1/8 in x 1 1/8 in

For Tube Outside Diameter 1 1/8 in

Material Grade C12200

Max. Pressure 395 psi@200 Degrees F

Maximum Operating Pressure 395 psi @ 200 Degrees F

Maximum Operating Temperature 400 Degrees F

Minimum Operating Temperature 20 Degrees F

Outside Dia. 1-1/8

Package Quantity 1

Pipe Fitting Connection Type FTG x FTG

Pipe Fitting Material Wrot Copper

Resistance Properties Dezincification-Resistant

Specific Fitting Shape 90 Degree Long Radius Elbow

Specific Pipe Fitting Shape 90 Degrees Long Radius Elbow

Standards ASTM B75 Alloy C12200; Third-party Certified To NSF/ANSI 61 Annex G; ASME B16.22; MSS SP-104; NFPA 99 Health Care Facilities Gas And Vacuum Systems And The Compressed Gas Association, Pamphlet G4.1 (Medical Gas)

Stop and Shape 90 Degrees Long Radius Elbow

Temp. Range -20 Degrees to 400 Degrees F

Tube Fitting Material Wrot Copper

Tube Size 1
