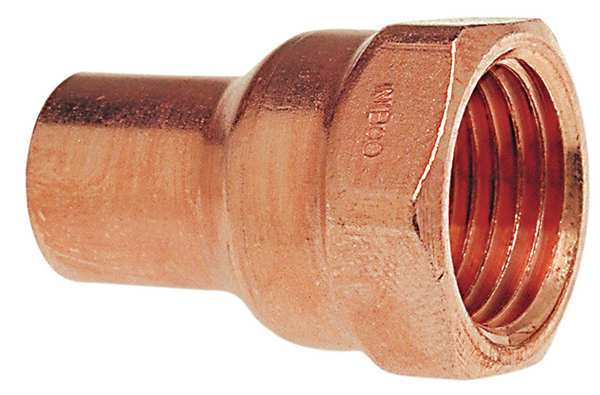

1" NOM FTG x 1" FNPT Copper Adapter

SKU
Brand Nibco
Categories
Description Adapter, Application Air, Gases, Potable Water, Fitting Side A Connection Type FTG, Fitting Side B Connection Type FNPT, Fitting Side A Copper Tube Size 1 in, Fitting Material Wrot Copper, Fitting Side B Pipe Size 1 in, Fitting Side A Tube Outer Diameter 1 1/8 in, Maximum Operating Pressure 395 psi @ 200 Degrees F, Maximum Operating Temperature 400 Degrees F, Specific Fitting Shape Straight Adapter
graingerSKU: 39R529, mscSKU: , zoro_no: G5147852, mongo_id: 65bbe67e3aaddbd5a903304f

Web Price

$14.61 / each

Qty

Product Details

Application Air, Gases, Potable Water

Basic Pipe Fitting Material Metal

Basic Pipe Fitting Shape Adapter

Connection Type FTG x FNPT

Copper Tube Size 1 in

Country of Origin (subject to change) United States

End Connection Type Fitting, Threaded

Fitting Connection Type FTG x FNPT

Fitting Copper Tube Size 1 in

Fitting Material Wrot Copper

Fitting Pipe Size 1 in

Fitting Shape Adapter

Fitting Side A Connection Type FTG

Fitting Side A Copper Tube Size 1 in

Fitting Side A Tube Outer Diameter 1 1/8 in

Fitting Side B Connection Type FNPT

Fitting Side B Pipe Size 1 in

For Tube OD 1 1/8 in

For Tube Outside Diameter 1 1/8 in

Material Grade C12200

Max. Pressure 395 psi@200 Degrees F

Maximum Operating Pressure 395 psi @ 200 Degrees F

Maximum Operating Temperature 400 Degrees F

Minimum Operating Temperature 20 Degrees F

Outside Dia. 1-1/8

Overall Length 2 1/32 in

Package Quantity 1

Pipe Fitting Connection Type FTG x FNPT

Pipe Fitting Material Wrot Copper

Pipe Size 1 in

Pipe Size (Fittings) 1

Pipe Size - Pipe Fitting 1

Resistance Properties Dezincification-Resistant

Specific Fitting Shape Adapter

Specific Pipe Fitting Shape Adapter

Standards ASTM B75 Alloy C12200; Third-party Certified To NSF/ANSI 61 Annex G; ASME B16.22; MSS SP-104; NFPA 99 Health Care Facilities Gas And Vacuum Systems And The Compressed Gas Association, Pamphlet G4.1 (Medical Gas)

Stop and Shape Straight Adapter

Temp. Range -20 Degrees to 400 Degrees F

Tube Fitting Material Wrot Copper

Tube Size 1
