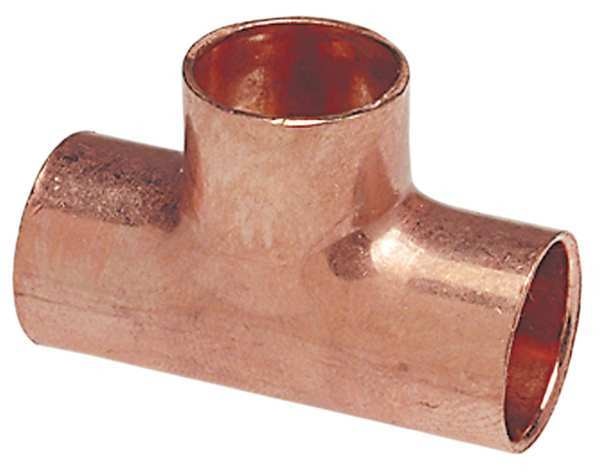

1" x 1" x 1-1/4" NOM C Copper Bullhead Tee

Home / 1" x 1" x 1-1/4" NOM C Copper Bullhead Tee

1" x 1" x 1-1/4" NOM C Copper Bullhead Tee

SKU
Brand Nibco
Categories
Description Bullhead Tee, Application Potable Water, Fitting Side A Connection Type Cup, Fitting Side B Connection Type Cup, Fitting Side C Connection Type Cup, Fitting Side A Copper Tube Size 1 in, Fitting Side B Copper Tube Size 1 in, Fitting Side C Copper Tube Size 1 1/4 in, Fitting Material Wrot Copper, Fitting Side A Tube Outer Diameter 1 1/8 in, Fitting Side B Tube Outer Diameter 1 1/8 in, Fitting Side C Tube Outer Diameter 1 3/8 in, Specific Fitting Shape Adapter Tee
graingerSKU: 39R603, mscSKU: , zoro_no: G5148464, mongo_id: 65bbe7503aaddbd5a9088fd1

Web Price

$25.03 / each

Qty

Product Details

Application Potable Water

Basic Pipe Fitting Material Metal

Basic Pipe Fitting Shape Tee

Connection Type Cup x Cup x Cup

Copper Tube Size 1 in x 1 in x 1 1/4 in

Country of Origin (subject to change) United States

End Connection Type Cup

Fitting Connection Type C x C x C

Fitting Copper Tube Size 1 1/4 in, 1 in

Fitting Material Wrot Copper

Fitting Shape Tee

Fitting Side A Connection Type Cup

Fitting Side A Copper Tube Size 1 in

Fitting Side A Tube Outer Diameter 1 1/8 in

Fitting Side B Connection Type Cup

Fitting Side B Copper Tube Size 1 in

Fitting Side B Tube Outer Diameter 1 1/8 in

Fitting Side C Connection Type Cup

Fitting Side C Copper Tube Size 1 1/4 in

Fitting Side C Tube Outer Diameter 1 3/8 in

For Tube OD 1 1/8 in x 1 1/8 in x 1 3/8 in

For Tube Outside Diameter 1 1/8 in

Max. Pressure 351 psi@200 Degrees F

Maximum Operating Pressure 351 psi @ 200 Degrees F

Maximum Operating Temperature 400 Degrees F

Minimum Operating Temperature 20 Degrees F

Outside Dia. 1-1/8 x 1-1/8 x 1-3/8

Package Quantity 1

Pipe Fitting Connection Type C x C x C

Pipe Fitting Material Wrot Copper

Resistance Properties Dezincification-Resistant

Specific Fitting Shape Bull Head Tee

Specific Pipe Fitting Shape Tee

Standards ASTM B75 Alloy C12200; Third-party Certified To NSF/ANSI 61 Annex G; ASME B16.22; MSS SP-104; MSS SP-109 (5 To 8); NFPA 99 Health Care Facilities Gas And Vacuum Systems And The Compressed Gas Association, Pamphlet G4.1 (Medical Gas)

Stop and Shape Adapter Tee

Temp. Range -20 Degrees to 400 Degrees F

Tube Fitting Material Wrot Copper

Tube Size 1 x 1 x 1-1/4
