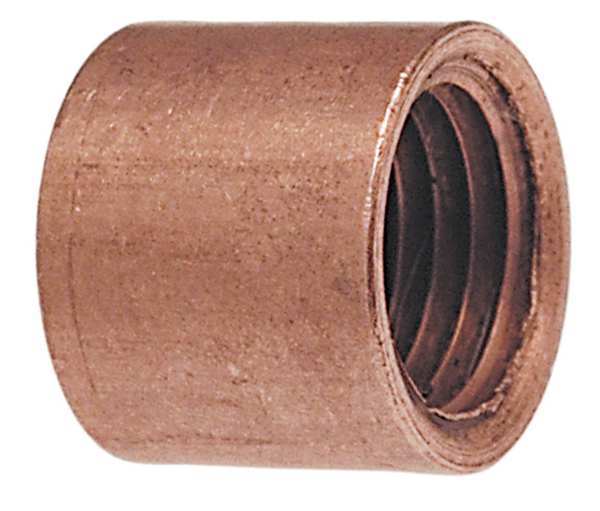

1/2" NOM FTG x 1/4" FNPT Copper Reducing Bushing

SKU
Brand Nibco
Categories
Description Reducing Bushing, Application Air, Gases, Potable Water, Fitting Side A Connection Type FTG, Fitting Side B Connection Type FNPT, Fitting Side A Copper Tube Size 1/2 in, Fitting Material Wrot Copper, Fitting Side B Pipe Size 1/4 in, Fitting Side A Tube Outer Diameter 5/8 in, Maximum Operating Pressure 577 psi @ 200 Degrees F, Maximum Operating Temperature 400 Degrees F, Specific Fitting Shape Reducing Bushing
graingerSKU: 39R512, mscSKU: , zoro_no: G5147746, mongo_id: 65bbee0c526e052139ae8604

Web Price

$7.31 / each

Qty

Product Details

Application Air, Gases, Potable Water

Basic Pipe Fitting Material Metal

Basic Pipe Fitting Shape Bushing

Connection Type FTG x FNPT

Copper Tube Size 1/2 in

Country of Origin (subject to change) United States

End Connection Type Fitting, Threaded

Fitting Connection Type FTG x FNPT

Fitting Copper Tube Size 1/2 in

Fitting Material Wrot Copper

Fitting Pipe Size 1/4 in

Fitting Shape Bushing

Fitting Side A Connection Type FTG

Fitting Side A Copper Tube Size 1/2 in

Fitting Side A Tube Outer Diameter 5/8 in

Fitting Side B Connection Type FNPT

Fitting Side B Pipe Size 1/4 in

For Tube OD 5/8 in

For Tube Outside Diameter 5/8 in

Material Grade C12200

Max. Pressure 577 psi@200 Degrees F

Maximum Operating Pressure 577 psi @ 200 Degrees F

Maximum Operating Temperature 400 Degrees F

Minimum Operating Temperature 20 Degrees F

Outside Dia. 5/8 x 3/8

Overall Length 9/16 in

Package Quantity 1

Pipe Fitting Connection Type FTG x FNPT

Pipe Fitting Material Wrot Copper

Pipe Size 1/4 in

Pipe Size (Fittings) 1/4

Pipe Size - Pipe Fitting 1/4

Resistance Properties Dezincification-Resistant

Specific Fitting Shape Reducing Bushing

Specific Pipe Fitting Shape Reducing Bushing

Standards ASTM B75 Alloy C12200; Third-party Certified To NSF/ANSI 61 Annex G; ASME B16.22; MSS SP-104; NFPA 99 Health Care Facilities Gas And Vacuum Systems And The Compressed Gas Association, Pamphlet G4.1 (Medical Gas)

Stop and Shape Reducing Bushing

Temp. Range -20 Degrees to 400 Degrees F

Tube Fitting Material Wrot Copper

Tube Size 1/2
