Home / 1/4" x 1/4" x 5/16" NOM C Copper Reducing Tee

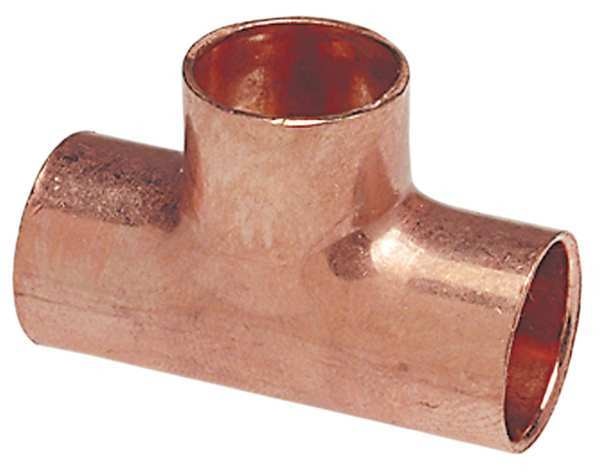

1/4" x 1/4" x 5/16" NOM C Copper Reducing Tee

SKU
Brand Nibco
Categories
Description Reducing Tee, Application Potable Water, Fitting Side A Connection Type Cup, Fitting Side B Connection Type Cup, Fitting Side C Connection Type Cup, Fitting Side A Copper Tube Size 1/4 in, Fitting Side B Copper Tube Size 1/4 in, Fitting Side C Copper Tube Size 5/16 in, Fitting Material Wrot Copper, Fitting Side A Tube Outer Diameter 3/8 in, Fitting Side B Tube Outer Diameter 3/8 in, Fitting Side C Tube Outer Diameter 7/16 in, Specific Fitting Shape Reducing Tee
graingerSKU: 39R621, mscSKU: , zoro_no: G5187411, mongo_id: 65bbea0a22d7a989a998f79e

Web Price

$16.44 / each

Qty

Product Details

Application Potable Water

Basic Pipe Fitting Material Metal

Basic Pipe Fitting Shape Tee

Connection Type Cup x Cup x Cup

Copper Tube Size 1/4 in x 1/4 in x 5/16 in

Country of Origin (subject to change) United States

End Connection Type Cup

Fitting Connection Type C x C x C

Fitting Copper Tube Size 1/4 in, 5/16 in

Fitting Material Wrot Copper

Fitting Shape Tee

Fitting Side A Connection Type Cup

Fitting Side A Copper Tube Size 1/4 in

Fitting Side A Tube Outer Diameter 3/8 in

Fitting Side B Connection Type Cup

Fitting Side B Copper Tube Size 1/4 in

Fitting Side B Tube Outer Diameter 3/8 in

Fitting Side C Connection Type Cup

Fitting Side C Copper Tube Size 5/16 in

Fitting Side C Tube Outer Diameter 7/16 in

For Tube OD 3/8 in x 3/8 in x 7/16 in

For Tube Outside Diameter 3/8 in, 7/16 in

Max. Pressure 729 psi@200 Degrees F

Maximum Operating Pressure 729 psi @ 200 Degrees F

Maximum Operating Temperature 400 Degrees F

Minimum Operating Temperature 20 Degrees F

Outside Dia. 3/8 x 3/8 x 7/16

Package Quantity 1

Pipe Fitting Connection Type C x C x C

Pipe Fitting Material Wrot Copper

Resistance Properties Dezincification-Resistant

Specific Fitting Shape Reducing Tee

Specific Pipe Fitting Shape Reducing Tee

Standards ASTM B75 Alloy C12200; Third-party Certified To NSF/ANSI 61 Annex G; ASME B16.22; MSS SP-104; MSS SP-109 (5 To 8); NFPA 99 Health Care Facilities Gas And Vacuum Systems And The Compressed Gas Association, Pamphlet G4.1 (Medical Gas)

Stop and Shape Reducing Tee

Temp. Range -20 Degrees to 400 Degrees F

Tube Fitting Material Wrot Copper

Tube Size 1/4 x 1/4 x 5/16
