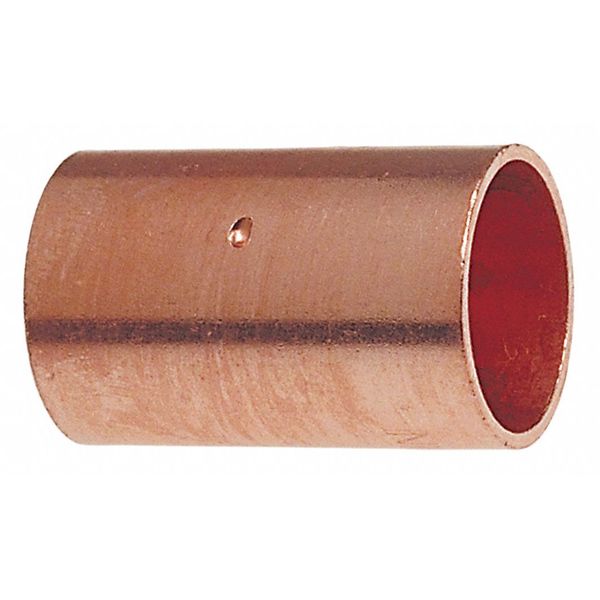

3-1/2" NOM C Copper Coupling with Stop

SKU
Brand Nibco
Categories
Description Coupling with Stop, Application Air, Gases, Potable Water, Fitting Side A Connection Type Cup, Fitting Side B Connection Type Cup, Fitting Side A Copper Tube Size 3 1/2 in, Fitting Side B Copper Tube Size 3 1/2 in, Fitting Material Wrot Copper, Fitting Side A Tube Outer Diameter 3 5/8 in, Fitting Side B Tube Outer Diameter 3 5/8 in, Maximum Operating Pressure 243 psi @ 200 Degrees F, Maximum Operating Temperature 400 Degrees F, Specific Fitting Shape Straight Coupling
graingerSKU: 39R694, mscSKU: , zoro_no: G5149304, mongo_id: 65bbe73d9a749db822729599

Web Price

$80.74 / each

Qty

Product Details

Application Air, Gases, Potable Water

Basic Pipe Fitting Material Metal

Basic Pipe Fitting Shape Coupling

Connection Type Cup x Cup

Copper Tube Size 3 1/2 in x 3 1/2 in

Country of Origin (subject to change) United States

End Connection Type Cup

Fitting Connection Type C x C

Fitting Copper Tube Size 3 1/2 in

Fitting Material Wrot Copper

Fitting Shape Connector

Fitting Side A Connection Type Cup

Fitting Side A Copper Tube Size 3 1/2 in

Fitting Side A Tube Outer Diameter 3 5/8 in

Fitting Side B Connection Type Cup

Fitting Side B Copper Tube Size 3 1/2 in

Fitting Side B Tube Outer Diameter 3 5/8 in

For Tube OD 3 5/8 in x 3 5/8 in

For Tube Outside Diameter 3 5/8 in

Includes Center Stop Dimple Center Stop

Material Grade C12200

Max. Pressure 243 psi@200 Degrees F

Maximum Operating Pressure 243 psi @ 200 Degrees F

Maximum Operating Temperature 400 Degrees F

Minimum Operating Temperature 20 Degrees F

Outside Dia. 3-5/8

Package Quantity 1

Pipe Fitting Connection Type C x C

Pipe Fitting Material Wrot Copper

Resistance Properties Dezincification-Resistant

Specific Fitting Shape Coupling

Specific Pipe Fitting Shape Coupling

Standards ASTM B75 Alloy C12200; Third-party Certified To NSF/ANSI 61 Annex G; ASME B16.22; MSS SP-104; MSS SP-109 (5 To 8); NFPA 99 Health Care Facilities Gas And Vacuum Systems And The Compressed Gas Association, Pamphlet G4.1 (Medical Gas)

Stop and Shape Dimple Center Stop Straight Coupling

Temp. Range -20 Degrees to 400 Degrees F

Tube Fitting Material Wrot Copper

Tube Size 3-1/2
