Home / 3-1/2" x 3" NOM FTG x C Copper Reducer

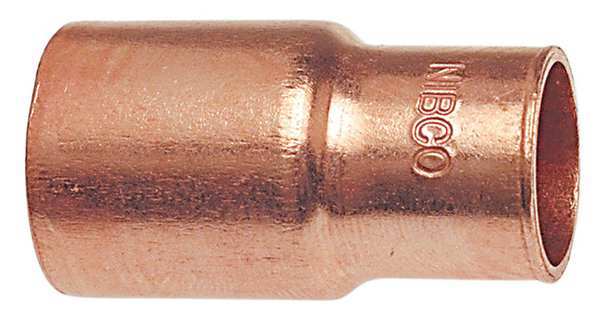

3-1/2" x 3" NOM FTG x C Copper Reducer

SKU
Brand Nibco
Categories
Description Fitting Reducer, Application Air, Gases, Potable Water, Fitting Side A Connection Type FTG, Fitting Side B Connection Type Cup, Fitting Side A Copper Tube Size 3 1/2 in, Fitting Side B Copper Tube Size 3 in, Fitting Material Wrot Copper, Fitting Side A Tube Outer Diameter 3 5/8 in, Fitting Side B Tube Outer Diameter 3 1/8 in, Maximum Operating Pressure 243 psi @ 200 Degrees F, Maximum Operating Temperature 400 Degrees F, Specific Fitting Shape Straight Reducing Coupling
graingerSKU: 39R758, mscSKU: , zoro_no: G5149873, mongo_id: 65bbee31526e052139af6b65

Web Price

$65.24 / each

Qty

Product Details

Application Air, Gases, Potable Water

Basic Pipe Fitting Material Metal

Basic Pipe Fitting Shape Reducer

Connection Type FTG x Cup

Copper Tube Size 3 1/2 in x 3 in

Country of Origin (subject to change) United States

End Connection Type Cup, Fitting

Fitting Connection Type FTG x C

Fitting Copper Tube Size 3 1/2 in, 3 in

Fitting Material Wrot Copper

Fitting Shape Connector

Fitting Side A Connection Type FTG

Fitting Side A Copper Tube Size 3 1/2 in

Fitting Side A Tube Outer Diameter 3 5/8 in

Fitting Side B Connection Type Cup

Fitting Side B Copper Tube Size 3 in

Fitting Side B Tube Outer Diameter 3 1/8 in

For Tube OD 3 5/8 in x 3 1/8 in

For Tube Outside Diameter 3 1/8 in, 3 5/8 in

Material Grade C12200

Max. Pressure 243 psi@200 Degrees F

Maximum Operating Pressure 243 psi @ 200 Degrees F

Maximum Operating Temperature 400 Degrees F

Minimum Operating Temperature 20 Degrees F

Outside Dia. 3-5/8 x 3-1/8

Package Quantity 1

Pipe Fitting Connection Type FTG x C

Pipe Fitting Material Wrot Copper

Resistance Properties Dezincification-Resistant

Specific Fitting Shape Reducer

Specific Pipe Fitting Shape Reducer

Standards ASTM B75 Alloy C12200; Third-party Certified To NSF/ANSI 61 Annex G; ASME B16.22; MSS SP-104; MSS SP-109 (5 in To 8 in); NFPA 99 Health Care Facilities Gas And Vacuum Systems And The Compressed Gas Association, Pamphlet G4.1 (Medical Gas)

Stop and Shape Straight Reducing Coupling

Temp. Range -20 Degrees to 400 Degrees F

Tube Fitting Material Wrot Copper

Tube Size 3-1/2 x 3
