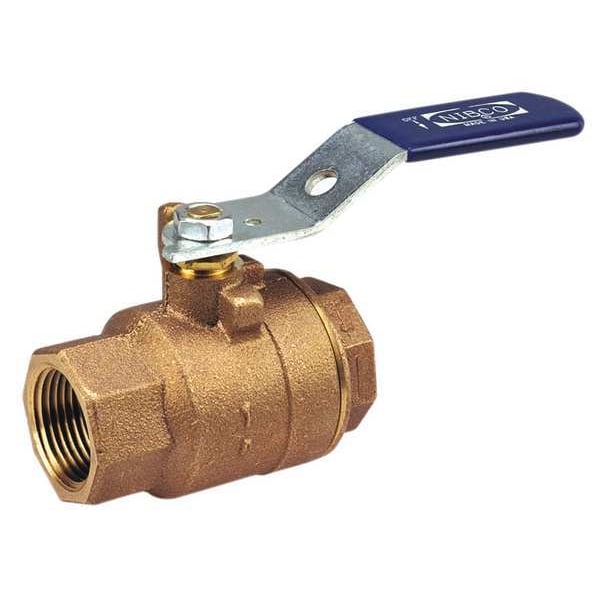

3/4" FNPT Bronze Ball Valve Inline

Home / 3/4" FNPT Bronze Ball Valve Inline

3/4" FNPT Bronze Ball Valve Inline

SKU
Brand Nibco
Categories
Description Ball Valve, Body Material Bronze, Body Style Inline, 2-Piece, Pipe Size 3/4 in, Connection Type FNPT x FNPT, Full Port, Max. Pressure 600 psi CWP, Max. Steam Pressure 150 psi WSP, Temp. Range -20 Degrees to 400 Degrees F, Ball Material Chrome Plated Brass, Seat Material RPTFE, Stem Type Blowout Proof, Handle Type Lever, Handle Material Zinc Plated Steel Clear Chromate Plastisol Coated, Stem Material Silicon Bronze, Body Seal Material PTFE
graingerSKU: 41E352, mscSKU: , zoro_no: G5273597, mongo_id: 65bbe8479a749db822781c29

Web Price

$44.97 / each

Qty

Product Details

Ball Material Chrome Plated Brass

Ball Valve Basic Body Material Bronze

Ball Valve Product Group Manual

Body Material Bronze

Body Seal Material PTFE

Body Style Inline

Compliance MSS SP-110

Connection FNPT

Connection Type FNPT x FNPT

Country of Origin (subject to change) United States

Features The two-piece valve is recommended for many high pressure applications, HVAC, hot and cold domestic water, low pressure steam, compressed air, LP gas and natural gas.

General Connection Type Female NPT

Handle Material Zinc Plated Steel Clear Chromate Plastisol Coated

Handle Type Lever

Material of Construction Cast Bronze

Max. Pressure 600 psi CWP

Max. Steam Pressure 150 PSI WSP

Overall Length 6.3

Package Quantity 1

Pipe Size 3/4

Port Full

Seat Material RPTFE

Standards MSS SP-110
