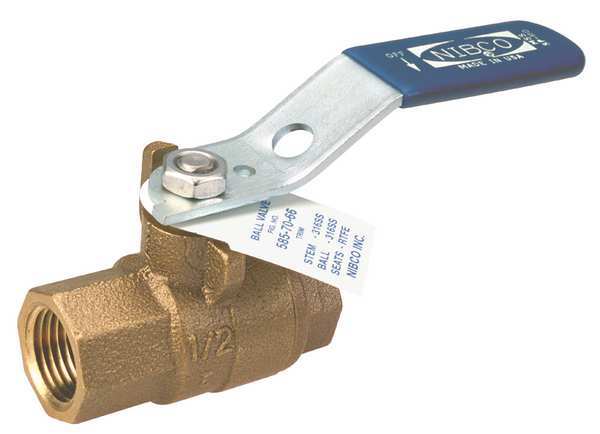

3/4" FNPT Bronze Ball Valve Inline

Home / 3/4" FNPT Bronze Ball Valve Inline

3/4" FNPT Bronze Ball Valve Inline

SKU
Brand Nibco
Categories
Description Ball Valve, Body Material Bronze, Body Style Inline, 2-Piece, Pipe Size 3/4 in, Connection Type FNPT x FNPT, Full Port, Max. Pressure 600 psi CWP, Max. Steam Pressure 150 psi WSP, Temp. Range -20 Degrees to 400 Degrees F, Ball Material 316 Stainless Steel, Seat Material RPTFE, Stem Type Blowout Proof, Handle Type Lever, Handle Material Zinc Plated Steel Clear Chromate Plastisol Coated, Stem Material 316 Stainless Steel, Body Seal Material PTFE
graingerSKU: 41E376, mscSKU: , zoro_no: G5273834, mongo_id: 65bbe84022d7a989a98e5b76

Web Price

$73.96 / each

Qty

Product Details

Ball Material 316 stainless steel

Ball Valve Basic Body Material Bronze

Ball Valve Product Group Manual

Body Material Bronze

Body Seal Material PTFE

Body Style Inline

Compliance MSS SP-110

Connection FNPT

Connection Type FNPT x FNPT

Country of Origin (subject to change) United States

Features The NIBCO(R) bronze ball valve ensures ease of operation with quarter-turn (90 Degrees ) open to close. The full port valve is ideal for commercial and light industrial process applications that may include HVAC, hot and cold domestic water, low pressure steam, compressed air, LP gas, natural gas and aggressive water applications.

General Connection Type Female NPT

Handle Material Zinc Plated Steel Clear Chromate Plastisol Coated

Handle Type Lever

Material of Construction Cast Bronze

Max. Pressure 600 psi CWP

Max. Steam Pressure 150 PSI WSP

Overall Length 6.3 in

Package Quantity 1

Pipe Size 3/4

Port Full

Seat Material RPTFE

Standards MSS SP-110
