Home / 3/8" NOM C Copper Cap

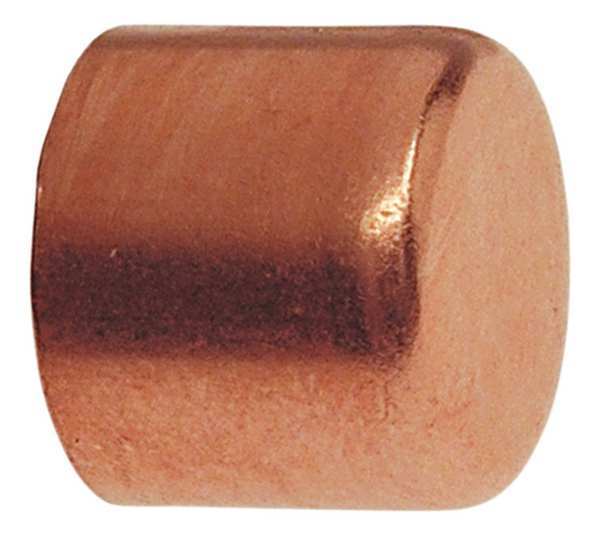

3/8" NOM C Copper Cap

SKU
Brand Nibco
Categories
Description Cap, Application Air, Potable Water, Compatible Copper Tube Size 3/8 in, Compatible Tube Outer Diameter 1/2 in, Fitting Connection Type Cup, Fitting Material Wrot Copper, Maximum Operating Pressure 623 psi @ 200 Degrees F, Maximum Operating Temperature 400 Degrees F, Specific Fitting Shape Cap, Standards ASME B16.22, ASTM B75 Alloy C12200, MSS SP-104, NFPA 99, NSF/ANSI 372, NSF/ANSI 61, UL 207, Minimum Operating Temperature 20 Degrees F, Resistance Properties Dezincification-Resistant
graingerSKU: 39R521, mscSKU: , zoro_no: G5147782, mongo_id: 65bbea3422d7a989a999ddb1

Web Price

$1.86 / each

Qty

Product Details

Application Air, Potable Water

Basic Pipe Fitting Material Metal

Basic Pipe Fitting Shape Cap

Compatible Copper Tube Size 3/8 in

Compatible Tube Outer Diameter 1/2 in

Connection Type Cup

Copper Tube Size 3/8 in

Country of Origin (subject to change) United States

End Connection Type Cup

Fitting Connection Type C

Fitting Copper Tube Size 3/8 in

Fitting Material Wrot Copper

Fitting Shape Cap

For Tube OD 1/2 in

For Tube Outside Diameter 1/2 in

Max. Pressure 623 psi@200 Degrees F

Maximum Operating Pressure 623 psi @ 200 Degrees F

Maximum Operating Temperature 400 Degrees F

Minimum Operating Temperature 20 Degrees F

Outside Dia. 1/2

Package Quantity 1

Pipe Fitting Connection Type C

Pipe Fitting Material Wrot Copper

Resistance Properties Dezincification-Resistant

Specific Fitting Shape Cap

Specific Pipe Fitting Shape Cap

Standards ASTM B75 Alloy C12200; Third-party Certified To NSF/ANSI 61 Annex G; ASME B16.22; MSS SP-104; NFPA 99 Health Care Facilities Gas And Vacuum Systems And The Compressed Gas Association, Pamphlet G4.1 (Medical Gas)

Stop and Shape Cap

Temp. Range -20 Degrees to 400 Degrees F

Tube Fitting Material Wrot Copper

Tube Size 3/8
