Home / 4" NOM C Copper Coupling

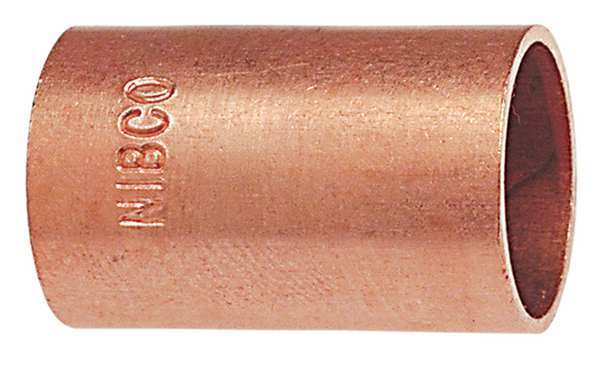

4" NOM C Copper Coupling

SKU
Brand Nibco
Categories
Description Coupling, Application Air, Gases, Potable Water, Fitting Side A Connection Type Cup, Fitting Side B Connection Type Cup, Fitting Side A Copper Tube Size 4 in, Fitting Side B Copper Tube Size 4 in, Fitting Material Wrot Copper, Fitting Side A Tube Outer Diameter 4 1/8 in, Fitting Side B Tube Outer Diameter 4 1/8 in, Maximum Operating Pressure 235 psi @ 200 Degrees F, Maximum Operating Temperature 400 Degrees F, Specific Fitting Shape Straight Coupling, Includes Center Stop No Center Stop
graingerSKU: 39R692, mscSKU: , zoro_no: G5149225, mongo_id: 65bbe65c3aaddbd5a9024bd9

Web Price

$76.44 / each

Qty

Product Details

Application Air, Gases, Potable Water

Basic Pipe Fitting Material Metal

Basic Pipe Fitting Shape Coupling

Connection Type Cup x Cup

Copper Tube Size 4 in x 4 in

Country of Origin (subject to change) United States

End Connection Type Cup

Fitting Connection Type C x C

Fitting Copper Tube Size 4 in

Fitting Material Wrot Copper

Fitting Shape Connector

Fitting Side A Connection Type Cup

Fitting Side A Copper Tube Size 4 in

Fitting Side A Tube Outer Diameter 4 1/8 in

Fitting Side B Connection Type Cup

Fitting Side B Copper Tube Size 4 in

Fitting Side B Tube Outer Diameter 4 1/8 in

For Tube OD 4 1/8 in x 4 1/8 in

For Tube Outside Diameter 4 1/8 in

Includes Center Stop No Center Stop

Material Grade C12200

Max. Pressure 235 psi@200 Degrees F

Maximum Operating Pressure 235 psi @ 200 Degrees F

Maximum Operating Temperature 400 Degrees F

Minimum Operating Temperature 20 Degrees F

Outside Dia. 4-1/8

Overall Length 4 5/16 in

Package Quantity 1

Pipe Fitting Connection Type C x C

Pipe Fitting Material Wrot Copper

Resistance Properties Dezincification-Resistant

Specific Fitting Shape Coupling

Specific Pipe Fitting Shape Coupling

Standards ASTM B75 Alloy C12200; Third-party Certified To NSF/ANSI 61 Annex G; ASME B16.22; MSS SP-104; MSS SP-109 (5 in To 8 in); NFPA 99 Health Care Facilities Gas And Vacuum Systems And The Compressed Gas Association, Pamphlet G4.1 (Medical Gas)

Stop and Shape No Center Stop Straight Coupling

Temp. Range -20 Degrees to 400 Degrees F

Tube Fitting Material Wrot Copper

Tube Size 4
