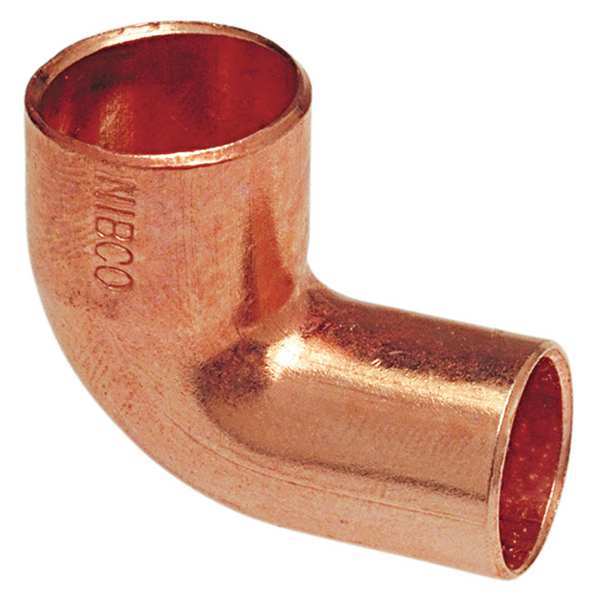

4" NOM FTG x C Copper 90 Degree Close Rough Elbow

SKU
Brand Nibco
Categories
Description Close Rough Elbow, Application Air, Gases, Potable Water, Fitting Side A Connection Type FTG, Fitting Side B Connection Type Cup, Fitting Side A Copper Tube Size 4 in, Fitting Side B Copper Tube Size 4 in, Fitting Material Wrot Copper, Fitting Side A Tube Outer Diameter 4 1/8 in, Fitting Side B Tube Outer Diameter 4 1/8 in, Maximum Operating Pressure 235 psi @ 200 Degrees F, Maximum Operating Temperature 400 Degrees F, Specific Fitting Shape 90 Degrees Close Rough Elbow
graingerSKU: 39R704, mscSKU: , zoro_no: G5149417, mongo_id: 65bbe5b03aaddbd5a9fdcd55

Web Price

$171.24 / each

Qty

Product Details

Application Air, Gases, Potable Water

Basic Pipe Fitting Material Metal

Basic Pipe Fitting Shape Elbow

Connection Type FTG x Cup

Copper Tube Size 4 in x 4 in

Country of Origin (subject to change) United States

End Connection Type Cup, Fitting

Fitting Connection Type FTG x C

Fitting Copper Tube Size 4 in

Fitting Material Wrot Copper

Fitting Shape Elbow

Fitting Side A Connection Type FTG

Fitting Side A Copper Tube Size 4 in

Fitting Side A Tube Outer Diameter 4 1/8 in

Fitting Side B Connection Type Cup

Fitting Side B Copper Tube Size 4 in

Fitting Side B Tube Outer Diameter 4 1/8 in

For Tube OD 4 1/8 in x 4 1/8 in

For Tube Outside Diameter 4 1/8 in

Material Grade C12200

Max. Pressure 235 psi@200 Degrees F

Maximum Operating Pressure 235 psi @ 200 Degrees F

Maximum Operating Temperature 400 Degrees F

Minimum Operating Temperature 20 Degrees F

Outside Dia. 4-1/8

Package Quantity 1

Pipe Fitting Connection Type FTG x C

Pipe Fitting Material Wrot Copper

Resistance Properties Dezincification-Resistant

Specific Fitting Shape 90 Degree Elbow

Specific Pipe Fitting Shape 90 Degrees Elbow

Standards ASTM B75 Alloy C12200; Third-party Certified To NSF/ANSI 61 Annex G; ASME B16.22; MSS SP-104; NFPA 99 Health Care Facilities Gas And Vacuum Systems And The Compressed Gas Association, Pamphlet G4.1 (Medical Gas)

Stop and Shape 90 Degrees Close Rough Elbow

Temp. Range -20 Degrees to 400 Degrees F

Tube Fitting Material Wrot Copper

Tube Size 4
