Home / 1" x 3 ft. Pipe Insulation, 1" Wall

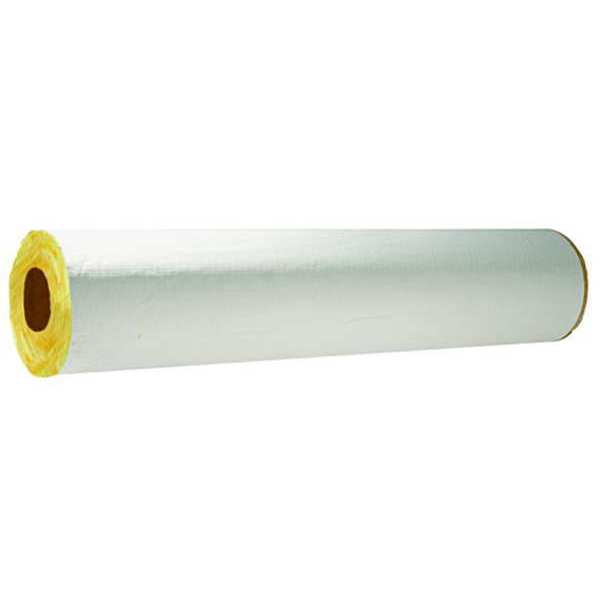

1" x 3 ft. Pipe Insulation, 1" Wall

SKU
Brand Owens Corning
Categories
Description Pipe Insulation, Insulation Material Fiberglass, Installation Style Slit with Adhesive and Flap, Inside Diameter 1 25/64 in, Wall Thickness 1 in, Overall Length 3 ft, Minimum Operating Temperature 0 Degrees F, Maximum Operating Temperature 1,000 Degrees F, Facing Material ASJ Facing, Color Tan, R Value 7, Form Tube, For Copper Tube Size 1 3/8 in, For Pipe Size 1 in, Flame Spread Index 25, Smoke Developed Index 50, Foam Cell Type Not Applicable, Plenum Rating Plenum Rated
graingerSKU: 4LFD2, mscSKU: , zoro_no: G1120594, mongo_id: 65bbee31526e052139af59b2

Web Price

$15.99 / each

Qty

Product Details

Approx. K Value 0.14

Approx. R Value 7

Clean Room Class Not Applicable

Color Tan

Country of Origin (subject to change) United States

Fits Pipe Size 1 in

Fits Pipe Size - Pipe Insulation 1 in

Fits Tube Size 1 3/8 in

Flame Spread Index 25

Flexibility Not Applicable

Foam Cell Type Not Applicable

For Iron Pipe Size 1

For Tube O.D. 1-3/8

Green Certification or Other Recognition GREENGUARD Certified

Green Environmental Attribute Total VOC Emissions Less Than or Equal To 0.5 mg/m and Formaldehyde Emissions Less Than or Equal To 0.05 ppm

Green Environmental Properties Formaldehyde Less Than or Equal to 0.05 ppm, Total VOC Less Than or Equal to 0.5 mg/cu m

Includes Pressure Sensitive Adhesive System

Installation Style Slit with Adhesive and Flap

Insulation Approx. K Value 0.14

Insulation Approx. R Value 7

Insulation Body Material Fiberglass

Insulation Length 3 ft

Insulation Max. Thickness 1

Insulation Nominal I.D. 1 25/64 in

Insulation Temp. Range 0 Degrees F to 1000 Degrees F

Insulation Type Hinged with Self Sealing Lap

K Value 0.14 BTU

Length 3 ft.

Material Fiberglass

Package Quantity 1

Pipe Insulation Item Pipe Insulation

Plenum Rating Plenum Rated

R Value 7

Sealing Method Adhesive Flap Seal

Smoke Developed Index 50

Standards UL 723, ASTM E84 or CAN/ULC S-102-M, GREENGUARD, ASTM C 547; ASTM C 1136, Types 1-IV; ASTM C 795, MIL-I-22344D, Nuclear Regulatory Commission Guide 1.36, Non-Metallic Thermal Insulation; MIL-I-24244C (Ships); U.S. Coast Guard Approval No. 164.009; CAN/CGSB-51.9 - Type I, Class 2; New York City MEA No. 344-83; NFPA 90A; ASTM C411; ASTM C302; ASTM E96 (Procedure A)

Temp. Range 0 Degrees to 1000 Degrees F

Tube Style Hinged

Wall Thickness 1 in

Wall Thickness - Insulation 1 in
