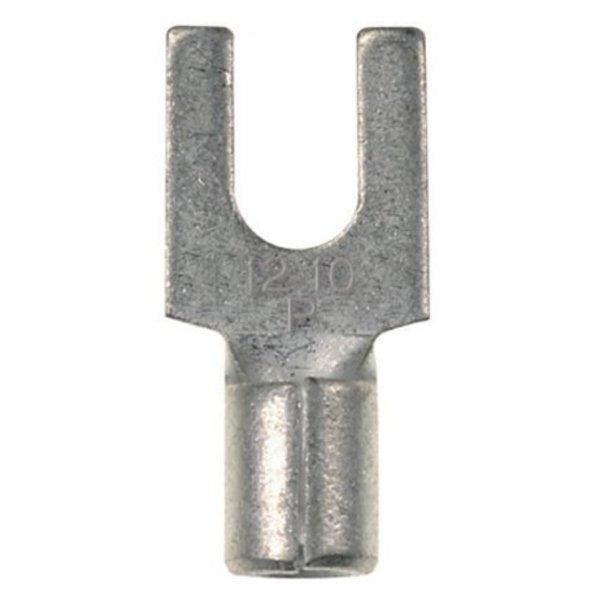

22-16 AWG Non-Insulated Fork Terminal #6 Stud PK1000

  • Panduit
  • Fork Terminal, Contact Finish Tin, Contact Material Copper, Insulation Color Bare, Insulation Coverage None, Insulation Material None, Maximum Operating Temperature 302 Degrees F, Maximum Voltage 2,000 V, Maximum Wire Size 16 AWG, Stud Size #6, Termination Style Crimp, Tongue Length 0.39 in, Seam Style Brazed, Standards CSA Certified, UL 587-H, UL Listed, Barrel Length 0.25 in, Compatible Grainger Part Number 376T32, 376T39, 38YU60, 38YU63

    graingerSKU: null, mscSKU: null, zoro_no: G0287710, mongo_id: 65bbe6a53aaddbd5a9043d08

Web Price
$189.99 / each
Qty

Product Details

0.25 in
CT-100A, CT-1570, CT-160, CT-200, CT-2500 (CT-2570CH), CT-260, CT-600-A (CT-570CH)
Crimp Tool, Crimper, Wire Stripper
CT
Copper
Crimp
Tin
Copper
Mexico
Barrel of Terminal Internally Beveled to Provide, Fork Design Provides for Fast and Easy Installation, Internal Barrel Serrations Assure Good Wire Contact and Maximum Tensile Strength, Without The Need to Remove Fastener
16 AWG, 18 AWG, 20 AWG, 22 AWG
Bare
None
None
Non-Insulated
302 Degrees F
2,000 V
302 Degrees F
2,000 V
16 AWG
22 AWG
0.63 in
1000
Brazed
Brazed
Barrel of Terminal Internally Beveled to Provide, Fork Design Provides for Fast and Easy Installation, Internal Barrel Serrations Assure Good Wire Contact and Maximum Tensile Strength
CSA Certified, UL 587-H, UL Listed
1/4 in
#6
Crimp
Standard Fork
Standard
Crimp Termination Only
Crimp
0.00 - 0.50 inches
0.03 in
0.28 in
0.28 in
22 to 16 AWG
22 AWG - 16 AWG
