Home / 22-16 AWG Non-Insulated Ring Terminal #8 Stud PK1000

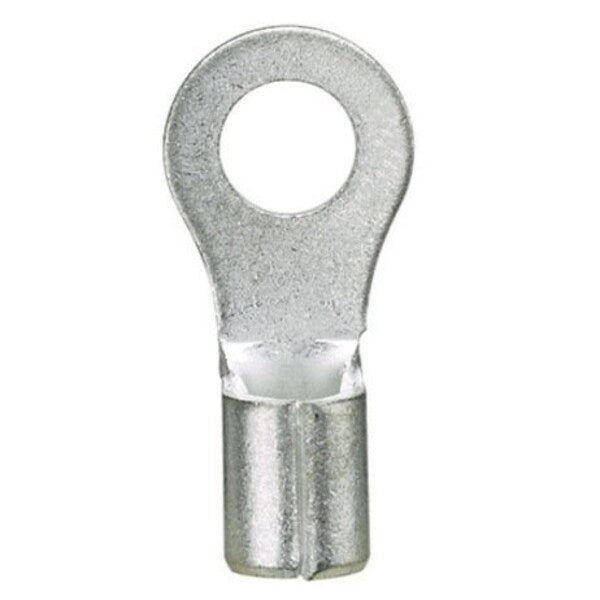

22-16 AWG Non-Insulated Ring Terminal #8 Stud PK1000
22-16 AWG Non-Insulated Ring Terminal #8 Stud PK1000

22-16 AWG Non-Insulated Ring Terminal #8 Stud PK1000

  • Panduit
  • Ring Terminal, Insulation Color Bare, Insulation Coverage None, Insulation Material None, Maximum Operating Temperature 302 Degrees F, Maximum Voltage 2,000 V, Minimum Wire Size 22 AWG, Maximum Wire Size 16 AWG, Termination Style Crimp, Tongue Width 0.31 in, Contact Finish Tin, Contact Material Copper, Standards CSA C22.2 No. 65, UL 486A, UL 486B, Barrel Inside Diameter 0.07 in, Barrel Length 0.28 in, Barrel Outside Diameter 0.31 in, Barrel Style Serrated Barrel

    graingerSKU: 39AZ19, mscSKU: , zoro_no: G0287677, mongo_id: 65bbe6c73aaddbd5a905227a

Web Price
$187.49 / each
Qty

Product Details

0.07 in
0.07 in
0.28 in
0.31 in
Serrated Barrel
Standard
Copper
CT-100, CT-100A, CT-1570, CT-160, CT-200, CT-2500, CT-260, CT-570, CT-600-A
Copper
Crimp
1 x Ring Terminal
Tin
Ring Terminal
Tin
Copper
Mexico
Yes
Brazed Seam
Tin-Plated
CT-100, CT-1570, CT-2300/ST (CD-570), CT-2500/L (CT-2570CH), UP14ZLW (CD-570)
16 AWG, 18 AWG, 20 AWG, 22 AWG
22 AWG to 16 AWG
Does Not Contain PVC
0.17 in
0.07
1.8
None
Bare
None
None
Non-Insulated
0.7
302 Degrees F
2,000 V
#18
1
302 Degrees F
150
302
2,000 V
2000
16 AWG
#18
#22
221 Degrees F
22 AWG
#22
0.31
7.9
0.71 in
0.71
18
0.31
7.9
1000
Bulk
Bottle
Copper
Terminal Connector
Terminal Connector
0.26 - 0.50 inches
Brazed
Brazed
Brazed
Ring Tongue Design Assures a Secure Connection in High Vibration Applications
CSA C22.2 No. 65, UL 486A, UL 486B
UL Listed 587H E52164, CSA Certified LR31212
1/4 in
#8
4
#8
Pan-Term®
Crimp
Ring Terminal
Ring Tongue
Crimp Termination Only
Crimp
0.03 in
0.03
0.8
0.31 in
0.31
7.9
0.71 in
UL 486A-486B
0.3
22 to 16 AWG
11933
7.1
