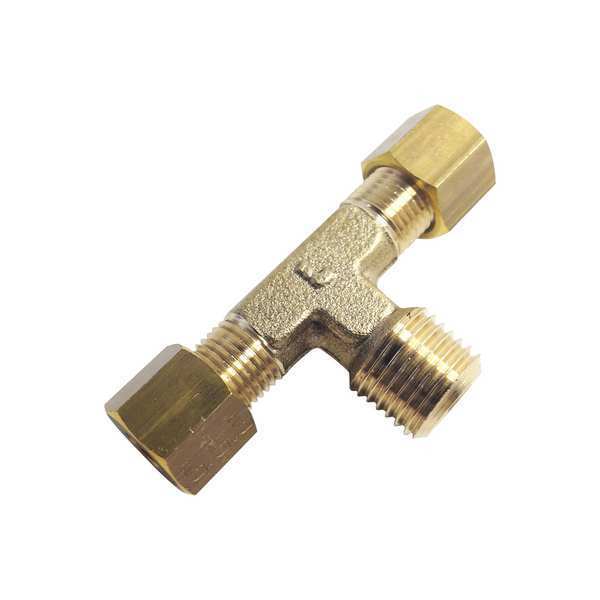

Brass Metric Compression Fitting

Brass Metric Compression Fitting

  • Parker
  • Raw Materials
  • Brass Metric Compression Fitting, Application Air Lines, Automotive Process, Cooling Lines, Fluid Transfer, Lubrication Lines, Water Lines, Fitting Side A Connection Type Compression, Fitting Side B Connection Type Compression, Fitting Side C Connection Type BSPT, Fitting Material Brass, Fitting Side A Tube Outer Diameter 6 mm, Fitting Side B Tube Outer Diameter 6 mm, Thread Size C R1/8, System of Measurement Metric, Maximum Operating Pressure 3,335 psi
Web Price
$14.61 / each
Qty

Product Details

Air Lines, Automotive Process, Cooling Lines, Fluid Transfer, Lubrication Lines, Water Lines
Brass, Copper, Polyamide, Steel
Compression x Compression x BSPT
France
Compression
Brass
Brass
1/8 in
Tee
Compression
6 mm
Compression
6 mm
BSPT
1/8 in
6 mm x 6 mm
6 mm
3,335 psi
250 Degrees F
-40 Degrees F
44 mm
1
1/8 in
Tee
CNOMO: E07.21.115N, DI: 2002/95/EC (RoHS), DI: 94/9/EC (ATEX), DI: 97/23/EC (PED), RG: 1907/2006 (REACH)
Metric
R1/8
R1/8
