Home / Hydraulic Motor, 18.9 Cu. In./Rev.

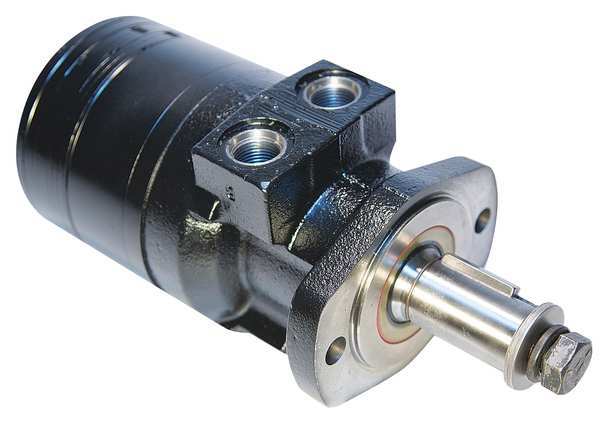

Hydraulic Motor, 18.9 Cu. In./Rev.

Hydraulic Motor, 18.9 Cu. In./Rev.

  • Parker
  • Lifting and Hydraulics
  • Hydraulic Motor, 18.9 cu in/rev Displacement, Continuous Torque 8,184 in-lb, Flange Mount SAE A 2-Bolt, 7/8 In.-14 SAE Port Size, Shaft Dia. 1 1/4 in, Min. Oil Viscosity 50 SUS, Max. RPM 303 RPM, Pressure Rating 3000 psi, Shaft Type Keyed, Max. Oil Temp. 180 Degrees F, Shaft Length 2.37 in, Length 8.46 in, Height 5.03 in, Mounting Plate Width 5.25 in

    graingerSKU: 30E853, mscSKU: , zoro_no: G4677224, mongo_id: 65bbee36526e052139af9509

Web Price
$2,047.49 / each
Qty

Product Details

8,184 in-lb
United States
18.9 cu in/rev
310
18.9
SAE A 2-Bolt
5.03 in
5.03
8.46 in
8.46
180 Degrees F
180
303 RPM
50 SUS
5.25 in
1
7/8-14 SAE
7/8-14 SAE
SAE O-Ring
3000 psi
3000
TG
1 1/4 in
1-1/4
2.37 in
2.37
Keyed
5.25
