Home / 10-32 UNF x 0.17" Barb Brass Straight Male Connector
10-32 UNF x 0.17
10-32 UNF x 0.17

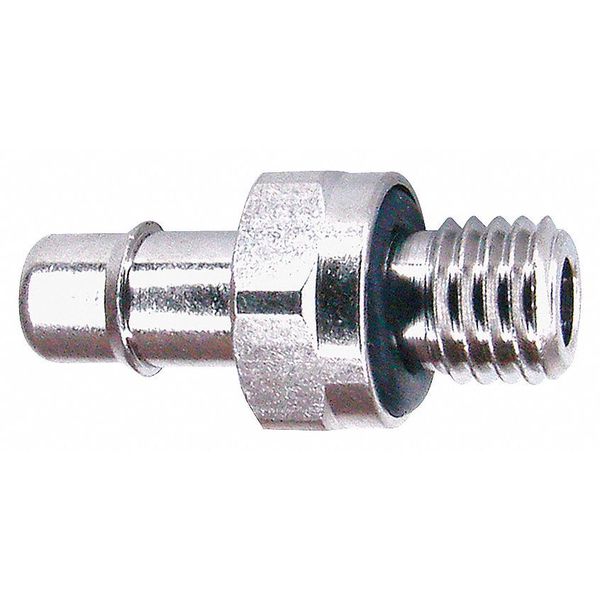

10-32 UNF x 0.17" Barb Brass Straight Male Connector

  • Pneumadyne
  • Raw Materials
  • Straight Male Connector, Fitting Side A Connection Type Barbed, Fitting Side B Connection Type UNF, Fitting Side A Tube Inner Diameter 17/100 in, Fitting Material Brass, Finish/Coating Nickel-Plated, Overall Length 11/16 in, Specific Fitting Shape Straight Adapter, Application Air, Maximum Operating Pressure 125 psi, Maximum Operating Temperature 160 Degrees F, Hex Size 5/16 in, Minimum Operating Temperature 20 Degrees F, Thread Size B 10-32

    graingerSKU: 5NJD9, mscSKU: , zoro_no: G1317547, mongo_id: 65bbea0a22d7a989a998f8c5

Web Price
$2.36 / each
Qty

Product Details

Air
5/32 in
Metal
Connector
Barbed x UNF
United States
Threaded
Nickel-Plated
Nickel-Plated Brass
Barbed x UNF
Brass
Adapter
Barbed
17/100 in
UNF
17/100 in
17/100 in
5/16 in
-28 in Hg Vac to 125 psi
125 psi
160 Degrees F
20 Degrees F
11/16 in
1
Barbed x UNF
Straight Adapter
Connector
-20 Degrees to 160 Degrees F
10-32
Brass
17/100 in
11/64 in
