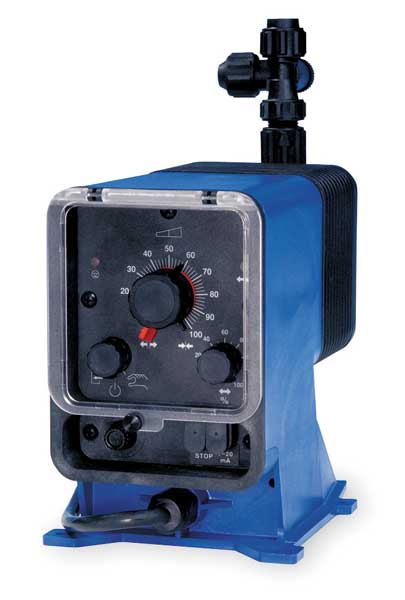

Pulsafeeder Diaphragm Metering Pump, 96 GPD, 100 PSI

Home / Pulsafeeder Diaphragm Metering Pump, 96 GPD, 100 PSI

Pulsafeeder Diaphragm Metering Pump, 96 GPD, 100 PSI

SKU
Brand Pulsatron
Categories Pumps
Description Chemical Metering Pump, Chemical Compatibility Ammonium Hydroxide, Calcium Carbonate, Hydrochloric Acid 10 Percent, Hydrochloric Acid 20 Percent, Hydrochloric Acid 30 Percent, Hydrochloric Acid 40 Percent, Phosphoric Acid 40 Percent, Potassium Hydroxide 50 Percent, Sodium Hydroxide 20 Percent, Sodium Hydroxide 50 Percent, Sodium Hydroxide 80 Percent, Sulfuric Acid 10 Percent, Water, Control Programs Manual Control, Diaphragm Material CSPE, PTFE, Discharge Connection Size 1/2 in
graingerSKU: 4UP29, mscSKU: , zoro_no: G0433535, mongo_id: 65bbe7533aaddbd5a908abdf

Web Price

$1,757.49 / each

Qty

Product Details

Ball Material Ceramic

Ball Material - Pumps Ceramic

Body Material ABS

Body Material - Pumps ABS

cc/Min. 247.2 cc/min

Check Ball Material Ceramic

Chemical Compatibility Ammonium Hydroxide, Calcium Carbonate, Hydrochloric Acid 10%, Hydrochloric Acid 20%, Hydrochloric Acid 30%, Hydrochloric Acid 40%, Phosphoric Acid 40%, Potassium Hydroxide 50%, Sodium Hydroxide 20%, Sodium Hydroxide 50%, Sodium Hydroxide 80%, Sulfuric Acid 10%, Water

Chemical Metering Pump Type Diaphragm

Control Programs Manual Control

Cord Length 6 ft

Country of Origin (subject to change) United States

Degassing Valve Included No

Diaphragm Material CSPE, PTFE

Discharge Connection Size 1/2 in

Discharge Connection Type Tube

Duty Cycle Continuous

Features Solenoid Drive, Stroke Length and Speed Adjustment

Fitting Material Glass-Filled Polypropylene

Flow Rate (Maximum) 96 gpd

Flow Rate (Minimum) 0.9 gpd

Flow Rate Output Control Adjustable

Frequency 60 Hz

Head and Fitting Material GFPPL

Head and Fitting Material - Pumps GFPPL

Head Material Glass-Filled Polypropylene

Height 11 in

Horsepower (Maximum) 1/5 hp

Housing Material ABS

HP - Pumps 1/5 hp

Hz_ 50/60

Includes 4 ft Suction Tubing, 8 ft Discharge Tubing and 4 ft Bleed Valve Tubing, Backpressure Injection Valve Assembly, Bleed Valve, Foot Valve/Strainer Assembly

Intake Connection Size 1/2 in

Intake Connection Type Tube

Item - Chemical Metering Pumps Chemical Metering Pump

Length 11 3/4 in

Max. Flow (gpd) - Pumps 96.00 gpd

Max. Flow Rate 96 gpd

Max. Pressure 100 psi

Max. Pressure - Pumps 100 psi

Max. Strokes per Minute 125 stroke/min

Max. Viscosity 1000 cps

Max. Viscosity - Pumps 1,000 cps

Media Temperature (Maximum) 104 Degrees F

Min. Flow Rate 0.9 gpd

Motor Thermal Protection Auto

Nameplate Voltage 115/230V AC

Number of Feeds 1

Operating Pressure (Maximum) 100 psi

Overall Height 10.9 in

Overall Length 11.7 in

Overall Width 5.4 in

Package Quantity 1

Phase Single

Phase - Pumps 1

Priming Self-Priming

Pump Drive Type Solenoid

Pump Type Diaphragm

Reproducibility +/-2.0%

Reproducibility - Pumps +/-2.0%

Seal Material PTFE

Seals and O-Rings PTFE

Seals and O-Rings - Pumps PTFE

Self-Priming Yes

Standards CE Certified, ETL, ETL Sanitation, NSF 61 Certified

Stroke Rate (Maximum) 125 stroke/min

Suction Lift 4 ft

Tubing Material PVC/Polyethylene

Turn Down Ratio 100:1

Turn Down Ratio - Pumps 100:1

Viscosity (Maximum) 1,000 cps

Voltage 115

Voltage - Pumps 115V AC

Width 5 7/16 in
