Female Rod End, Nylon/PTFE, LH, 3/8-24
Female Rod End, Nylon/PTFE, LH, 3/8-24

Female Rod End, Nylon/PTFE, LH, 3/8-24

  • Qa1
  • Raw Materials

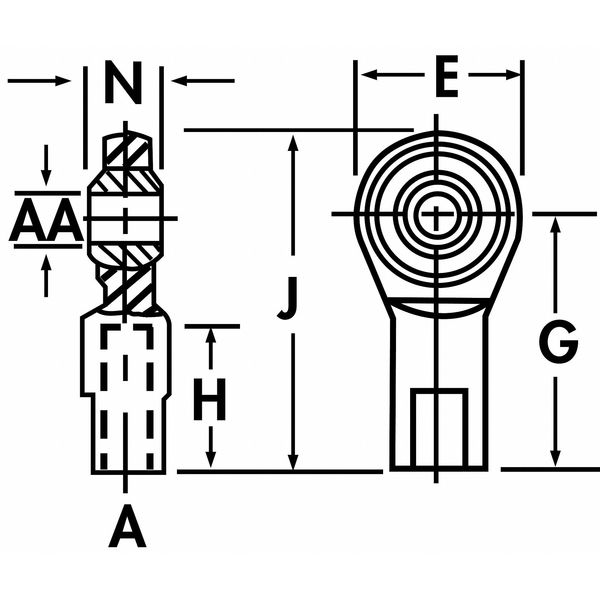

  • Spherical Rod End, System of Measurement Inch, Bore Diameter 3/8 in, Head Outside Diameter 1 in, Head Width 0.406 in, Shank Thread Length 7/8 in, Shank Thread Size 3/8 In.-24, Housing Material Carbon Steel, Shank Thread Direction Left Hand, Application Low Load, Moderate Oscillation, Ball Diameter 0.719 in, Ball Material Alloy Steel, Ball Material Grade 52100, Bore Diameter Tolerance +0.0025/-0.0005 in, Housing Material Finish Chrome Plated, Inner Ring Width 0.5 in

    graingerSKU: 20F902, mscSKU: , zoro_no: G4425416, mongo_id: 65bbe7be3aaddbd5a90b1efa

Web Price
$6.24 / each
Qty

Product Details

Low Load, Moderate Oscillation
52100 Steel Spherical
0.719 in
Alloy Steel
52100
52100 Steel Spherical Ball
3/8 in
+0.0025/-0.0005 in
Follows SAE Specification J1120
China
3/8-24
0.375/0.377 in
1.0 in
1.625 in
0.937 in
2.125 in
0.5 in
1 in
0.406 in
Carbon Steel
Carbon Steel
Chrome Plated
0.5 in
0.375/0.377 in
12 Degrees
12 Degrees
2 1/8 in
1
Nylon/PTFE
Corrosion Resistant, High Wear Resistant, Low Moisture Absorption
Spherical Rod End
Yes
Left Hand
Female
7/8 in
3/8-24
Female Plain
Female Plain
ISO Certified 9001
4,100 lb
4,100 lbf
Inch
Left Hand
3/8-24
Female Plain
