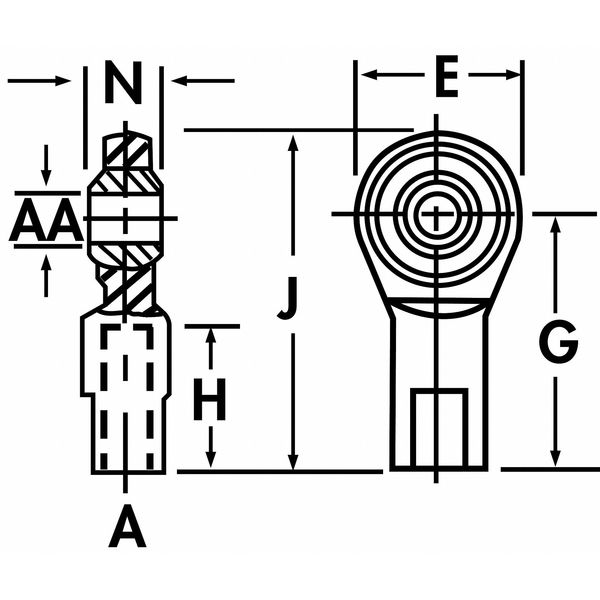

Female Rod End, Nylon/PTFE, RH, 3/4-16
Female Rod End, Nylon/PTFE, RH, 3/4-16

Female Rod End, Nylon/PTFE, RH, 3/4-16

  • Qa1
  • Raw Materials
  • Spherical Rod End, System of Measurement Inch, Bore Diameter 3/4 in, Head Outside Diameter 1 3/4 in, Head Width 0.687 in, Shank Thread Length 1 3/4 in, Shank Thread Size 3/4 In.-16, Housing Material Carbon Steel, Shank Thread Direction Right Hand, Application Low Load, Moderate Oscillation, Ball Diameter 1.312 in, Ball Material Alloy Steel, Ball Material Grade 52100, Bore Diameter Tolerance +0.0025/-0.0005 in, Housing Material Finish Chrome Plated, Inner Ring Width 0.875 in

    graingerSKU: 20F909, mscSKU: , zoro_no: G4460267, mongo_id: 65bbe78f9a749db822743eab

Web Price
$16.61 / each
Qty

Product Details

Low Load, Moderate Oscillation
52100 Steel Spherical
1.312 in
Alloy Steel
52100
52100 Steel Spherical Ball
3/4 in
+0.0025/-0.0005 in
Follows SAE Specification J1120
China
3/4-16
0.750/0.752 in
1.75 in
2.875 in
1.75 in
3.75 in
0.875 in
1 3/4 in
0.687 in
Carbon Steel
Carbon Steel
Chrome Plated
0.875 in
0.750/0.752 in
14 Degrees
14 Degrees
3 3/4 in
1
Nylon/PTFE
Corrosion Resistant, High Wear Resistant, Low Moisture Absorption
Spherical Rod End
Yes
Right Hand
Female
1 3/4 in
3/4-16
Female Plain
Female Plain
ISO Certified 9001
10,900 lb
10,900 lbf
Inch
Right Hand
3/4-16
Female Plain
