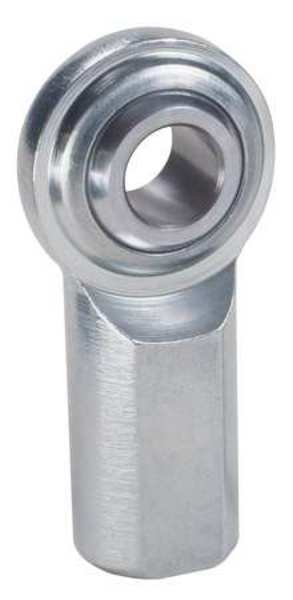

Female Rod End, RH, 1/2-20
Female Rod End, RH, 1/2-20

Female Rod End, RH, 1/2-20

  • Qa1
  • Raw Materials
  • Spherical Rod End, System of Measurement Inch, Bore Diameter 1/2 in, Head Outside Diameter 1 1/4 in, Head Width 0.453 in, Shank Thread Length 1 in, Shank Thread Size 1/2 In.-20, Housing Material Carbon Steel, Shank Thread Direction Right Hand, Application Light Duty, Ball Diameter 0.937 in, Ball Material Alloy Steel, Ball Material Grade 52100, Bore Diameter Tolerance +0.0025/-0.0005 in, Housing Material Finish Chrome Plated, Inner Ring Width 0.625 in, Maximum Ball Swivel 20 Degrees

    graingerSKU: 20F969, mscSKU: , zoro_no: G5090766, mongo_id: 65bbe7e49a749db822760998

Web Price
$7.81 / each
Qty

Product Details

Light Duty
52100 Steel Spherical
0.937 in
Alloy Steel
52100
52100 Steel Spherical Ball
1/2 in
+0.0025/-0.0005 in
Follows SAE Specification J1120
China
1/2-20
0.500/0.502 in
1.312 in
2.125 in
1.062 in
2.781 in
0.625 in
1 1/4 in
0.453 in
Carbon Steel
Carbon Steel
Chrome Plated
0.625 in
0.500/0.502 in
26 Degrees
20 Degrees
2 3/4 in
1
Not Applicable
Corrosion Resistant
Spherical Rod End
Yes
Right Hand
Female
1 in
1/2-20
Female Plain
Female Plain
ISO Certified 9001
10,046 lb
10,046 lbf
Inch
Right Hand
1/2-20
Female Plain
