Home / Female, Rod End, RH, 16/16.065mm
Female, Rod End, RH, 16/16.065mm
Female, Rod End, RH, 16/16.065mm

Female, Rod End, RH, 16/16.065mm

  • Qa1
  • Raw Materials

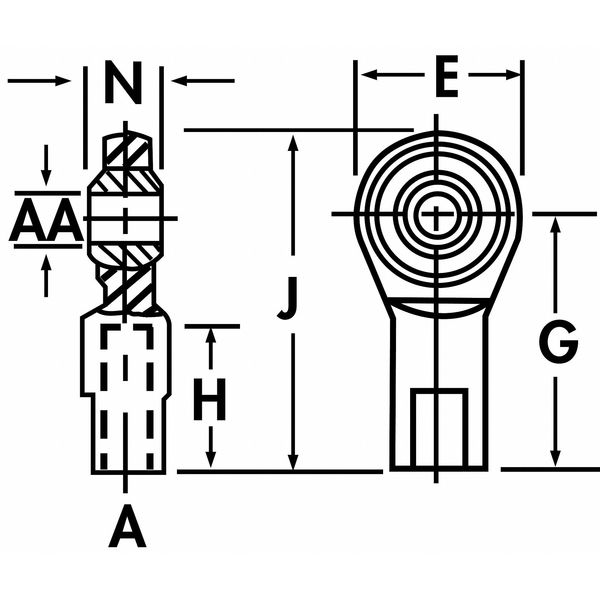

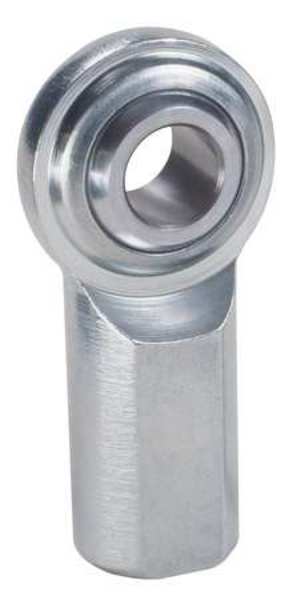

  • Spherical Rod End, System of Measurement Metric, Bore Diameter 16 mm, Head Outside Diameter 38 mm, Head Width 12.75 mm, Shank Thread Length 33 mm, Shank Thread Size M16-2.0, Housing Material Carbon Steel, Shank Thread Direction Right Hand, Application Light Duty, Ball Diameter 28.58 mm, Ball Material Alloy Steel, Ball Material Grade 52100, Bore Diameter Tolerance +0.065/-0.012 in, Housing Material Finish Chrome Plated, Inner Ring Width 21 mm, Maximum Ball Swivel 33 Degrees , Overall Length 83 mm

    graingerSKU: 39N435, mscSKU: , zoro_no: G6178566, mongo_id: 65bbe80f9a749db82276ee24

Web Price
$12.74 / each
Qty

Product Details

Light Duty
52100 Steel Spherical
28.58 mm
Alloy Steel
52100
52100 Steel Spherical Ball
16 mm
+0.065/-0.012 in
Follows SAE Specification J1120
China
M16 x 2.0
16/16.065mm
38 mm
64 mm
33 mm
83 mm
21 mm
38 mm
12.75 mm
Low Carbon
Carbon Steel
Chrome Plated
21 mm
16/16.065mm
33 Degrees
33 Degrees
83 mm
1
Corrosion Resistant
Spherical Rod End
Right Hand
Female
33 mm
M16-2.0
Female Plain
Female Plain
ISO Certified 9001
37,391 N
37,391 N
Metric
Right Hand
M16 x 2.0
Female Plain
