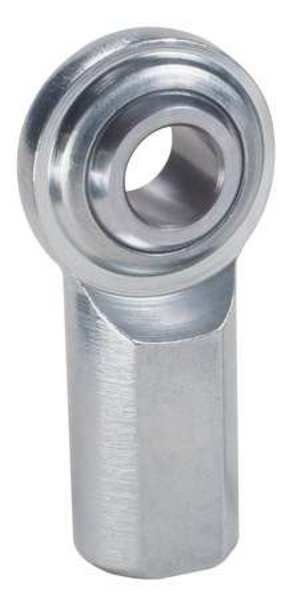

Female Rod End, RH, 5/16-24

  • Qa1
  • Raw Materials
  • Spherical Rod End, System of Measurement Inch, Bore Diameter 5/16 in, Head Outside Diameter 7/8 in, Head Width 0.312 in, Shank Thread Length 5/8 in, Shank Thread Size 5/16 In.-24, Housing Material Carbon Steel, Shank Thread Direction Right Hand, Application Light Duty, Ball Diameter 0.625 in, Ball Material Alloy Steel, Ball Material Grade 52100, Bore Diameter Tolerance +0.0025/-0.0005 in, Housing Material Finish Chrome Plated, Inner Ring Width 0.437 in, Maximum Ball Swivel 22 Degrees

    graingerSKU: 20F963, mscSKU: , zoro_no: G4714683, mongo_id: 65bbee06526e052139ae640a

Web Price
$7.36 / each
Qty

Product Details

Light Duty
52100 Steel Spherical
0.625 in
Alloy Steel
52100
52100 Steel Spherical Ball
5/16 in
+0.0025/-0.0005 in
Follows SAE Specification J1120
China
5/16-24
0.3125/0.3145 in
0.875 in
1.375 in
0.687 in
1.813 in
0.437 in
7/8 in
0.312 in
Carbon Steel
Carbon Steel
Chrome Plated
0.437 in
0.3125/0.3145 in
22 Degrees
22 Degrees
1 13/16 in
1
Not Applicable
Corrosion Resistant
Spherical Rod End
Yes
Right Hand
Female
5/8 in
5/16-24
Female Plain
Female Plain
ISO Certified 9001
5,110 lb
5,110 lbf
Inch
Right Hand
5/16-24
Female Plain
