Home / Female Stud Rod End, LH, 3/4-16

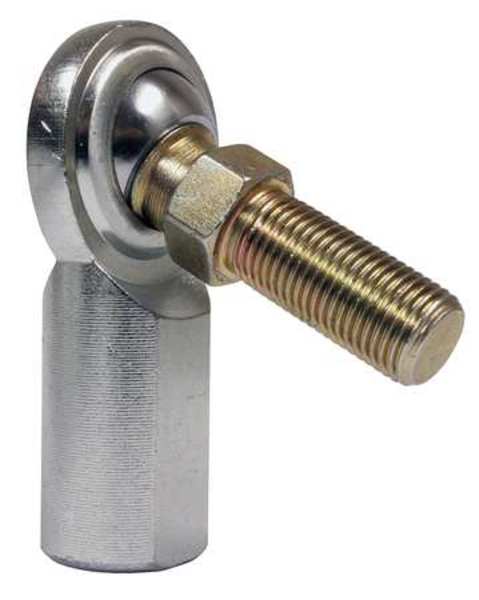

Female Stud Rod End, LH, 3/4-16
Female Stud Rod End, LH, 3/4-16

Female Stud Rod End, LH, 3/4-16

  • Qa1
  • Raw Materials
  • Spherical Rod End, System of Measurement Inch, Ball Stud Center Length 3 in, Ball Stud Thread Length 1 5/8 in, Ball Stud Thread Size 3/4 In.-16, Bore Diameter 3/4 in, Head Outside Diameter 1 3/4 in, Head Width 0.593 in, Shank Thread Length 1 1/2 in, Shank Thread Size 3/4 In.-16, Housing Material Carbon Steel, Shank Thread Direction Left Hand, Application Light Duty, Ball Diameter 1.312 in, Ball Material Alloy Steel, Ball Material Grade 52100, Ball Stud Material Carbon Steel

    graingerSKU: 20G007, mscSKU: , zoro_no: G5505491, mongo_id: 65bbee06526e052139ae6417

Web Price
$12.94 / each
Qty

Product Details

Light Duty
52100 Steel Spherical
1.312 in
Alloy Steel
52100
3 in
Carbon Steel
Left Hand
1 5/8 in
3/4-16
52100 Steel Spherical Ball
3/4 in
+0.0025/-0.0005 in
Follows SAE Specification J1120
China
3/4-16
1.188 in
1.812 in
1.75 in
2.875 in
1.562 in
3.75 in
1 3/4 in
0.593 in
Carbon Steel
Carbon Steel
Chrome Plated
0.875 in
24 Degrees
24 Degrees
3 3/4 in
1
Not Applicable
Corrosion Resistant
Spherical Rod End
Yes
Left Hand
Female
1 1/2 in
3/4-16
Female Studded
ISO Certified 9001
15,894 lb
15,894 lbf
1.812 in
Inch
Left Hand
3/4-16
Female Studded
