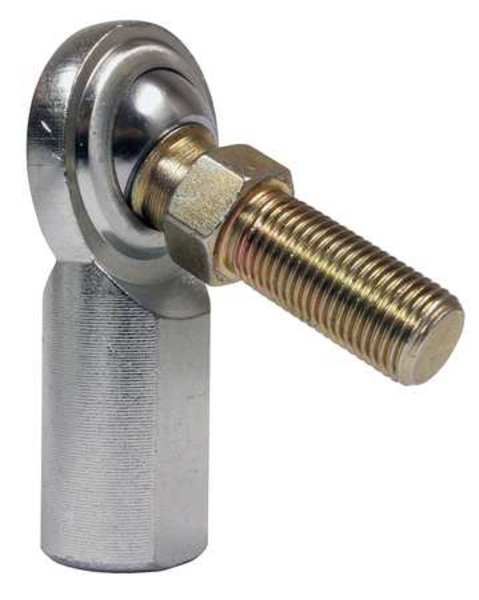

Female Stud Rod End, RH, 3/8-24
Female Stud Rod End, RH, 3/8-24

Female Stud Rod End, RH, 3/8-24

  • Qa1
  • Raw Materials
  • Spherical Rod End, System of Measurement Inch, Ball Stud Center Length 1 1/2 in, Ball Stud Thread Length 3/4 in, Ball Stud Thread Size 3/8 In.-24, Bore Diameter 3/8 in, Head Outside Diameter 1 in, Head Width 0.359 in, Shank Thread Length 3/4 in, Shank Thread Size 3/8 In.-24, Housing Material Carbon Steel, Shank Thread Direction Right Hand, Application Light Duty, Ball Diameter 0.719 in, Ball Material Alloy Steel, Ball Material Grade 52100, Ball Stud Material Carbon Steel

    graingerSKU: 20F997, mscSKU: , zoro_no: G4712644, mongo_id: 65bbe7e49a749db822760992

Web Price
$9.24 / each
Qty

Product Details

Light Duty
52100 Steel Spherical
0.719 in
Alloy Steel
52100
1 1/2 in
Carbon Steel
Right Hand
3/4 in
3/8-24
52100 Steel Spherical Ball
3/8 in
+0.0025/-0.0005 in
Follows SAE Specification J1120
China
3/8-24
0.656 in
0.906 in
1.0 in
1.625 in
0.812 in
2.125 in
1 in
0.359 in
Carbon Steel
Carbon Steel
Chrome Plated
0.5 in
22 Degrees
22 Degrees
2 1/8 in
1
Not Applicable
Corrosion Resistant
Spherical Rod End
Yes
Right Hand
Female
3/4 in
3/8-24
Female Studded
ISO Certified 9001
6,323 lb
6,323 lbf
0.906 in
Inch
Right Hand
3/8-24
Female Studded
