Home / Female Stud Rod End, SS, LH, #10-32

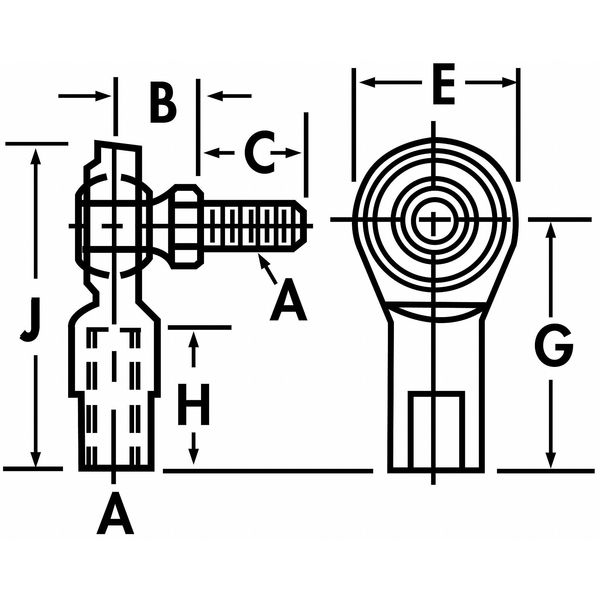

Female Stud Rod End, SS, LH, #10-32
Female Stud Rod End, SS, LH, #10-32

Female Stud Rod End, SS, LH, #10-32

  • Qa1
  • Raw Materials
  • Spherical Rod End, System of Measurement Inch, Ball Stud Center Length 1 in, Ball Stud Thread Length 3/8 in, Ball Stud Thread Size #10-32, Bore Diameter 3/16 in, Head Outside Diameter 5/8 in, Head Width 0.234 in, Shank Thread Length 1/2 in, Shank Thread Size #10-32, Housing Material Stainless Steel, Shank Thread Direction Left Hand, Application Light Duty, Ball Diameter 0.437 in, Ball Material Stainless Steel, Ball Material Grade 440C, Ball Stud Material Stainless Steel

    graingerSKU: 20G057, mscSKU: , zoro_no: G5841367, mongo_id: 65bbe7ba9a749db8227524a9

Web Price
$16.74 / each
Qty

Product Details

Light Duty
440C Stainless Steel Spherical
0.437 in
Stainless Steel
440C
1 in
Stainless Steel
Left Hand
3/8 in
#10-32
440C Stainless Steel Spherical Ball
3/16 in
+0.0015/-0.0005 in
Follows SAE Specification J1120
China
#10-32 in
0.5 in
0.5 in
0.625 in
1.062 in
0.5 in
1.375 in
5/8 in
0.234 in
300 Series Stainless Steel
Stainless Steel
Chrome Plated
0.312 in
20 Degrees
20 Degrees
1 3/8 in
1
PTFE
Corrosion Resistant
Spherical Rod End
Yes
Left Hand
Female
1/2 in
#10-32
Closeouts
Female Studded
ISO Certified 9001
1,190 lb
1,190 lbf
0.5 in
Inch
Left Hand
#10-32
Female Studded
