Home / Female Stud Rod End, SS, RH, 5/8-18

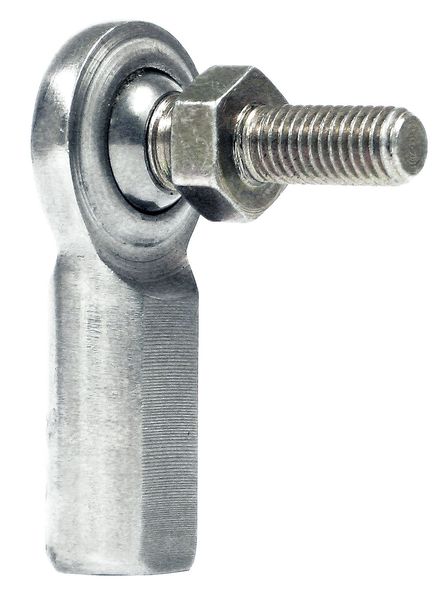

Female Stud Rod End, SS, RH, 5/8-18
Female Stud Rod End, SS, RH, 5/8-18

Female Stud Rod End, SS, RH, 5/8-18

  • Qa1
  • Raw Materials

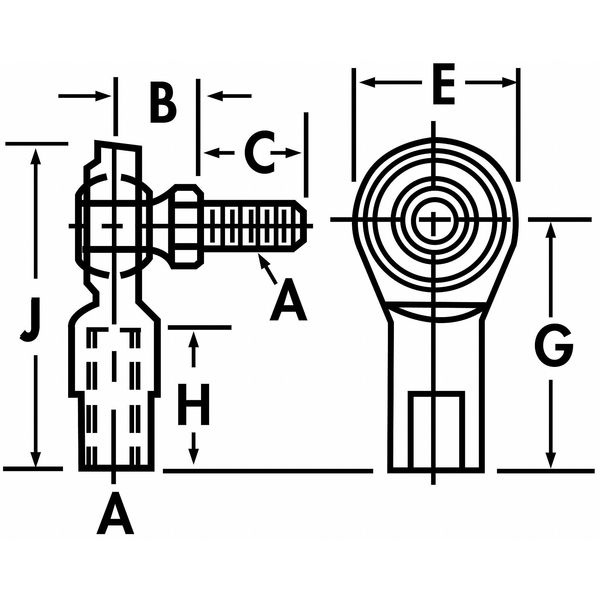

  • Spherical Rod End, System of Measurement Inch, Ball Stud Center Length 2 1/2 in, Ball Stud Thread Length 1 3/8 in, Ball Stud Thread Size 5/8 In.-18, Bore Diameter 5/8 in, Head Outside Diameter 1 1/2 in, Head Width 0.484 in, Shank Thread Length 1 3/8 in, Shank Thread Size 5/8 In.-18, Housing Material Stainless Steel, Shank Thread Direction Right Hand, Application Light Duty, Ball Diameter 1.125 in, Ball Material Stainless Steel, Ball Material Grade 440C, Ball Stud Material Stainless Steel

    graingerSKU: 20G068, mscSKU: , zoro_no: G5702794, mongo_id: 65bbee06526e052139ae6413

Web Price
$54.36 / each
Qty

Product Details

Light Duty
440C Stainless Steel Spherical
1.125 in
Stainless Steel
440C
2 1/2 in
Stainless Steel
Right Hand
1 3/8 in
5/8-18
440C Stainless Steel Spherical Ball
5/8 in
+0.0015/-0.0005 in
Follows SAE Specification J1120
China
5/8-18
1.0 in
1.5 in
1.5 in
2.5 in
1.375 in
3.25 in
1 1/2 in
0.484 in
300 Series Stainless Steel
Stainless Steel
Chrome Plated
0.75 in
26 Degrees
26 Degrees
3 1/4 in
1
PTFE
Corrosion Resistant
Spherical Rod End
Yes
Right Hand
Female
1 3/8 in
5/8-18
Female Studded
ISO Certified 9001
8,200 lb
8,200 lbf
1.5 in
Inch
Right Hand
5/8-18
Female Studded
