Home / Male Rod End, RH, 3/8-24
Male Rod End, RH, 3/8-24
Male Rod End, RH, 3/8-24

Male Rod End, RH, 3/8-24

  • Qa1
  • Raw Materials

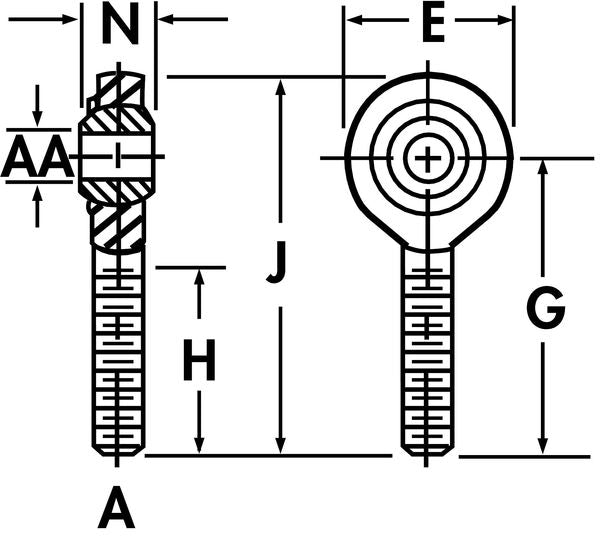

  • Spherical Rod End, System of Measurement Inch, Bore Diameter 3/8 in, Head Outside Diameter 1 in, Head Width 0.359 in, Shank Thread Length 1 1/4 in, Shank Thread Size 3/8 In.-24, Housing Material Carbon Steel, Shank Thread Direction Right Hand, Application Light Duty, Ball Diameter 0.719 in, Ball Material Alloy Steel, Ball Material Grade 52100, Bore Diameter Tolerance +0.0025/-0.0005 in, Housing Material Finish Chrome Plated, Inner Ring Width 0.5 in, Maximum Ball Swivel 22 Degrees

    graingerSKU: 20F981, mscSKU: , zoro_no: G4718707, mongo_id: 65bbe83422d7a989a98e1468

Web Price
$6.99 / each
Qty

Product Details

Light Duty
52100 Steel Spherical
0.719 in
Alloy Steel
52100
52100 Steel Spherical Ball
3/8 in
+0.0025/-0.0005 in
Follows SAE Specification J1120
China
3/8-24
0.375/0.377 in
1.0 in
1.938 in
1.25 in
2.438 in
0.5 in
1 in
0.359 in
Carbon Steel
Carbon Steel
Chrome Plated
0.5 in
0.375/0.377 in
22 Degrees
22 Degrees
2 7/16 in
1
Not Applicable
Corrosion Resistant
Spherical Rod End
Yes
Right Hand
Male
1 1/4 in
3/8-24
Male Plain
ISO Certified 9001
6,323 lb
6,323 lbf
Inch
Right Hand
3/8-24
Male Plain
