Home / Male, Rod End, RH, 6/6.065mm

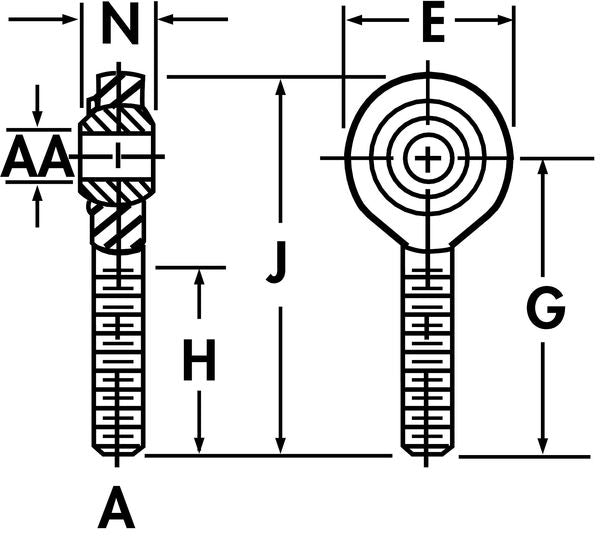

Male, Rod End, RH, 6/6.065mm
Male, Rod End, RH, 6/6.065mm

Male, Rod End, RH, 6/6.065mm

  • Qa1
  • Raw Materials
  • Spherical Rod End, System of Measurement Metric, Bore Diameter 6 mm, Head Outside Diameter 19 mm, Head Width 6.25 mm, Shank Thread Length 22 mm, Shank Thread Size M6-1.0, Housing Material Carbon Steel, Shank Thread Direction Right Hand, Application Light Duty, Ball Diameter 12.7 mm, Ball Material Alloy Steel, Ball Material Grade 52100, Bore Diameter Tolerance +0.065/-0.012 in, Housing Material Finish Chrome Plated, Inner Ring Width 9 mm, Maximum Ball Swivel 23 Degrees , Overall Length 45 1/2 mm

    graingerSKU: 39N439, mscSKU: , zoro_no: G8628627, mongo_id: 65bbe7be3aaddbd5a90b1f00

Web Price
$7.86 / each
Qty

Product Details

Light Duty
52100 Steel Spherical
12.7 mm
Alloy Steel
52100
52100 Steel Spherical Ball
6 mm
+0.065/-0.012 in
Follows SAE Specification J1120
China
M6 x 1.0
6/6.065mm
19 mm
36 mm
22 mm
45.5 mm
9 mm
19 mm
6.25 mm
Low Carbon
Carbon Steel
Chrome Plated
9 mm
6/6.065mm
23 Degrees
23 Degrees
45 1/2 mm
1
Corrosion Resistant
Spherical Rod End
Right Hand
Male
22 mm
M6-1.0
Male Plain
ISO Certified 9001
7,296 N
7,296 N
Metric
Right Hand
M6 x 1.0
Male Plain
