Home / Male, SS/PTFE Race Rod End, LH, 14/14.065mm
Male, SS/PTFE Race Rod End, LH, 14/14.065mm
Male, SS/PTFE Race Rod End, LH, 14/14.065mm

Male, SS/PTFE Race Rod End, LH, 14/14.065mm

  • Qa1
  • Raw Materials

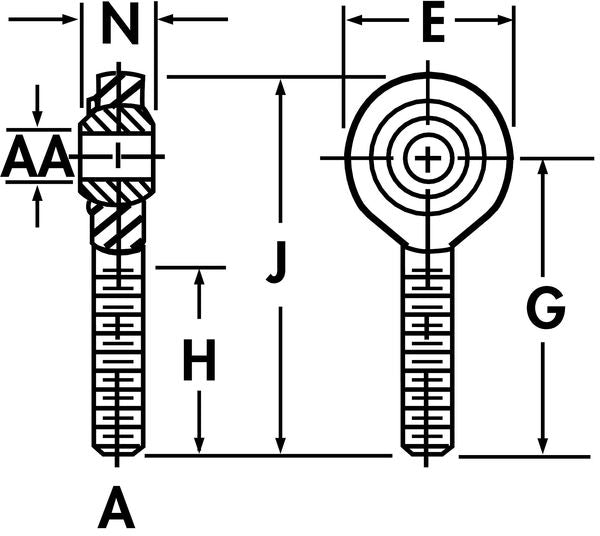

  • Spherical Rod End, System of Measurement Metric, Bore Diameter 14 mm, Head Outside Diameter 34.75 mm, Head Width 12.25 mm, Shank Thread Length 36 mm, Shank Thread Size M14-2.0, Housing Material Stainless Steel, Shank Thread Direction Left Hand, Application Light Duty, Ball Diameter 25.4 mm, Ball Material Stainless Steel, Ball Material Grade 440C, Bore Diameter Tolerance +0.065/-0.012 in, Housing Material Finish Chrome Plated, Inner Ring Width 19 mm, Maximum Ball Swivel 30 Degrees

    graingerSKU: 39N505, mscSKU: , zoro_no: G5614603, mongo_id: 65bbe83b9a749db82277d4a8

Web Price
$63.99 / each
Qty

Product Details

Light Duty
440C Stainless Steel Spherical
25.4 mm
Stainless Steel
440C
440C SS Spherical Ball
14 mm
+0.065/-0.012 in
Follows SAE Specification J1120
China
M14 x 2.0
14/14.065mm
34.75 mm
60 mm
36 mm
77.375 mm
19 mm
34.75 mm
12.25 mm
300 Series Stainless Steel
Stainless Steel
Chrome Plated
19 mm
14/14.065mm
30 Degrees
30 Degrees
77 3/8 mm
1
PTFE
Corrosion Resistant
Spherical Rod End
Yes
Left Hand
Male
36 mm
M14-2.0
Male Plain
ISO Certified 9001
23,699 N
23,699 N
Metric
Left Hand
M14 x 2.0
Male Plain
