Home / Male Stud Rod End, SS, RH, 7/16-20
Male Stud Rod End, SS, RH, 7/16-20
Male Stud Rod End, SS, RH, 7/16-20

Male Stud Rod End, SS, RH, 7/16-20

  • Qa1
  • Raw Materials

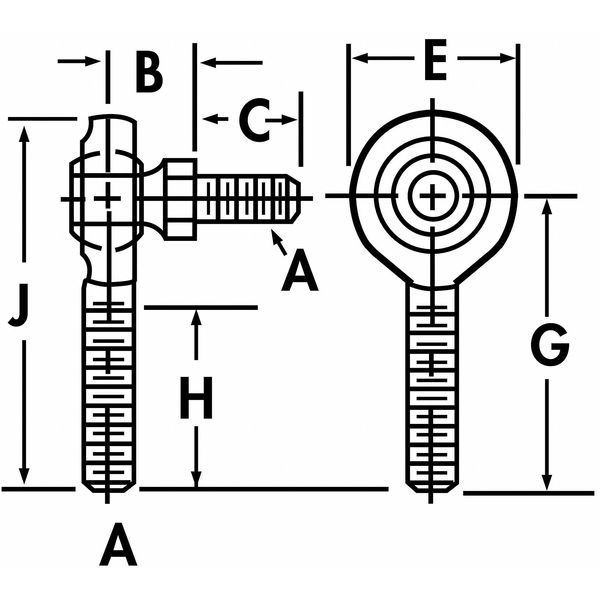

  • Spherical Rod End, System of Measurement Inch, Ball Stud Center Length 1 3/4 in, Ball Stud Thread Length 7/8 in, Ball Stud Thread Size 7/16 In.-20, Bore Diameter 7/16 in, Head Outside Diameter 1 1/8 in, Head Width 0.406 in, Shank Thread Length 1 3/8 in, Shank Thread Size 7/16 In.-20, Housing Material Stainless Steel, Shank Thread Direction Right Hand, Application Light Duty, Ball Diameter 0.812 in, Ball Material Stainless Steel, Ball Material Grade 440C, Ball Stud Material Stainless Steel

    graingerSKU: 20G080, mscSKU: , zoro_no: G5786505, mongo_id: 65bbe83422d7a989a98e1466

Web Price
$18.11 / each
Qty

Product Details

Light Duty
440C Stainless Steel Spherical
0.812 in
Stainless Steel
440C
1 3/4 in
Stainless Steel
Right Hand
7/8 in
7/16-20
440C Stainless Steel Spherical Ball
7/16 in
+0.0015/-0.0005 in
Follows SAE Specification J1120
China
7/16-20
0.688 in
1.062 in
1.125 in
2.125 in
1.375 in
2.688 in
1 1/8 in
0.406 in
300 Series Stainless Steel
Stainless Steel
Chrome Plated
0.562 in
21 Degrees
21 Degrees
2 11/16 in
1
PTFE
Corrosion Resistant
Spherical Rod End
Yes
Right Hand
Male
1 3/8 in
7/16-20
Male Studded
ISO Certified 9001
5,689 lb
5,689 lbf
1.062 in
Inch
Right Hand
7/16-20
Male Studded
