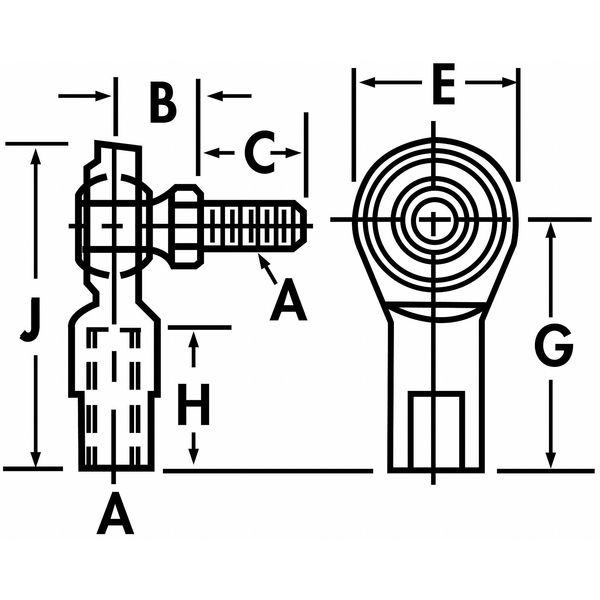

Home / Stud Rod End, Nylon/PTFE, RH, 7/16-20
Stud Rod End, Nylon/PTFE, RH, 7/16-20
Stud Rod End, Nylon/PTFE, RH, 7/16-20

Stud Rod End, Nylon/PTFE, RH, 7/16-20

  • Qa1
  • Raw Materials
  • Spherical Rod End, System of Measurement Inch, Ball Stud Center Length 1 3/4 in, Ball Stud Thread Length 7/8 in, Ball Stud Thread Size 7/16 In.-20, Bore Diameter 7/16 in, Head Outside Diameter 1 1/8 in, Head Width 0.437 in, Shank Thread Length 1 in, Shank Thread Size 7/16 In.-20, Housing Material Carbon Steel, Shank Thread Direction Right Hand, Application Low Load, Moderate Oscillation, Ball Diameter 0.812 in, Ball Material Alloy Steel, Ball Material Grade 52100, Ball Stud Material Carbon Steel

    graingerSKU: 20F935, mscSKU: , zoro_no: G4426256, mongo_id: 65bbe74c3aaddbd5a9086e32

Web Price
$12.11 / each
Qty

Product Details

Low Load, Moderate Oscillation
52100 Steel Spherical
0.812 in
Alloy Steel
52100
1 3/4 in
Carbon Steel
Right Hand
7/8 in
7/16-20
52100 Steel Spherical Ball
7/16 in
+0.0025/-0.0005 in
Follows SAE Specification J1120
China
7/16-20
0.688 in
1.062 in
1.125 in
1.812 in
1.062 in
2.375 in
1 1/8 in
0.437 in
Carbon Steel
Carbon Steel
Chrome Plated
0.562 in
14 Degrees
14 Degrees
2 3/8 in
1
Nylon/PTFE
Corrosion Resistant, High Wear Resistant, Low Moisture Absorption
Spherical Rod End
Yes
Right Hand
Female
1 in
7/16-20
Female Studded
ISO Certified 9001
5,350 lb
5,350 lbf
1.062 in
Inch
Right Hand
7/16-20
Female Studded
