Home / Cordgrip Conn, 90, 1", 0.75-0.85, Purple

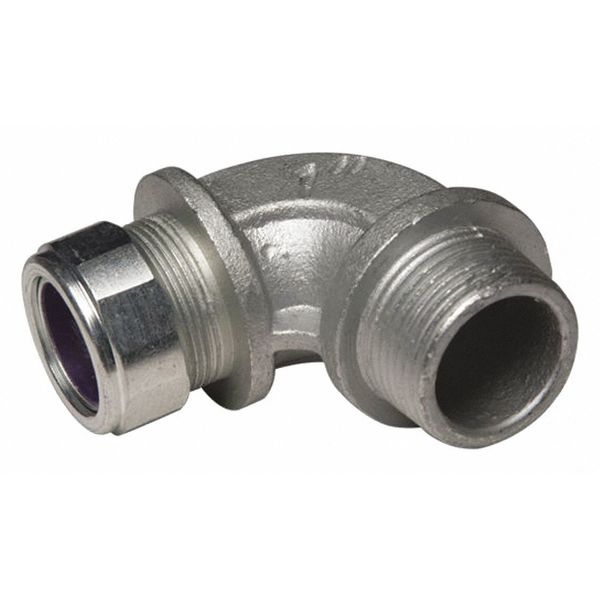

Cordgrip Conn, 90, 1", 0.75-0.85, Purple

SKU
Brand Raco
Categories
Description Cordgrip Conn,90,1 In.,0.75-0.85,Purple
graingerSKU: , mscSKU: , zoro_no: G3756529, mongo_id: 65bbe5d73aaddbd5a9fedcac

Web Price

$30.36 / each

Qty

Minimum order: 10

Product Details

Application For use in wet or dry locations to provide a liquidtight and strain relief termination for flexible cord and cableRACO liquidtight strain relief cord connectors are suitable for use in Class I, Div. 2; Class II, Div. 1 & 2; and Class III, Div. 1 & 2 hazardous locations

Cable Range .75 - .85 in

Certified Listed cULus Listed

Color Purple

Cord Dia. Range 0.75 to 0.85 in

Country of Origin (subject to change) China

Dimensions 3.75 in x 1.75 in x 1.75 in

Features Malleable iron construction provides mechanical strength and durability; Neoprene grommets are color-coded by cable diameter allowing for quick and easy identification; Metallic components are zinc plated for corrosion protection; Unique grommet design is forced up and around the cord when the nut is tightened creating a liquidtight seal; Time saving and easy installation - no need to disassemble the fitting for cord installation; Additional colors and sizes available

Hazardous Location Yes

Hazardous Location Rating Class I, Div 2, Class II, Div 1 and 2, Class III, Div 1 and 2

Height 1.75 in

Height (In.) 1-3/4 in

Length 3.75 in

Material Malleable Iron

Nema Rating NEMA 4

Overall Length 3-3/4 in

Package Quantity 1

Standards cULus Listed

Strain Relief Type Liquidtight Strain Relief

Trade Size 1 in
