Home / Cordgrip Conn, 90, 3/4", 0.500-0.600, Iron

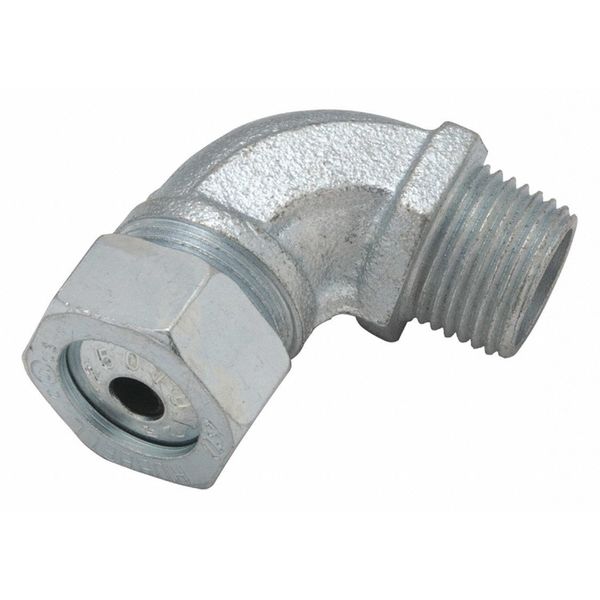

Cordgrip Conn, 90, 3/4", 0.500-0.600, Iron

SKU
Brand Raco
Categories
Description Connector, Conduit Fitting Type Connector

Web Price

$20.19 / each

Qty

Minimum order: 10

Product Details

Application Commercial Fittings

Cable Range .500 - .600 in

Certified Listed cULus Listed

Conduit Fitting Type Connector

Conduit Type Liquidtight

Connection Strain-Relief

Connector Type 90 Degrees

Cord Dia. Range 0.500 to 0.600 in

Country of Origin (subject to change) China

Dimensions 2.375 in x 1.204 in x 2.227 in

Environmental Conditions Wet Location

Features All steel/malleable construction provides mechanical strength; Unique Neoprene grommet design - grommet is forced up and around the cord when the nut is tightened for a positive liquidtight seal; Washers have size range imprinted for indentification - eliminates misidentifying inventory; Use RACO locknuts and sealing washers to complete a liquidtight installation on a sheet metal box or panel; All metallic components are zinc electroplated for corrosion protection; 1/2 in. to 3/4 in. Malleable Iron bodies; 1/2 in. to 3/4 in. Steel nuts; Additional sizes available

Fitting Type Connectors

For Conduit Type Liquid Tight Conduit

Form Size 3 in

Hazardous Location Yes

Hazardous Location Rating Class I, Div 2, Class II, Div 1 and 2, Class III, Div 1 and 2

Hazardous Rating(s) Class I, Division 2Class II Division 1 & 2Class III, Division 1 & 2

Height 2.227 in

Height (In.) 2.227 in

Length 2.375 in

Material Malleable Iron

Overall Length 2-3/8 in

Package Quantity 1
