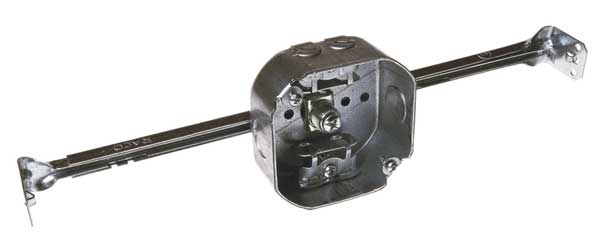

Electrical Box, Adjustable Bar, 15.5 cu. In.

SKU
Brand Raco
Categories Electric and Cordless Tools
Description Electrical Box, Box Type Octagon, Number of Gangs 2, Bracket Type -, Capacity 15.5 cu in, Material Galvanized Steel, Number of 1/2 In. Back Knockouts 0, Number of 1/2 In. Side Knockouts 2, Clamp Type Armored, Nominal Depth 1 1/2 in, Nominal Length 4 in, Nominal Width 4 in, Color Silver, Standards UL
graingerSKU: 2DDB1, mscSKU: , zoro_no: G1861081, mongo_id: 65bbe7a23aaddbd5a90a854c

Web Price

$13.61 / each

Qty

Product Details

Actual Depth 2.132 in

Box Type Octagon

Capacity 15.5 cu. in.

Certified Listed cULus Listed

Clamp Type Armored

Color Silver

Country of Origin (subject to change) United States

Cubic Capacity 15.5 cu.in

Depth 1.5 in

Drawn or Welded Drawn

Each - Width 14.500 in

Features Included bar hanger is adjustable 16-24 in.; 10 lb. max load recommended on 24 in. center; When used on 16 in. center, rated to support up to 50 lb. light fixture; Fixture bar hanger allows box to be located anywhere along length of bar; Maximum support load for a static is 50 lbs. when supported 16 in. centers; Cable clamps suitable for use with non-metallic sheathed cable; Not suitable for ceiling fan installations; 15.5 cu. in. capacity

Fixture Lbs. 10 lb.

Height 3.563 in

Knockouts 1/2 in

Material Galvanized steel

Nominal Depth 1-1/2

Nominal Length 4

Nominal Width 4

Number of 1/2 In. Back Knockouts 0

Number of 1/2 In. Side Knockouts 2

Number of Gang 2-Gang

Number of Gangs 2

Package Quantity 1
