Home / Electrical Box, Adjustable Bar, NM-B Clamp

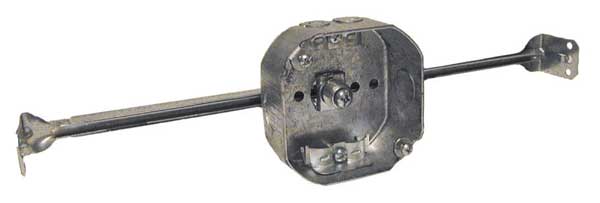

Electrical Box, Adjustable Bar, NM-B Clamp

SKU
Brand Raco
Categories Electric and Cordless Tools
Description Electrical Box, Box Type Octagon, Number of Gangs 2, Bracket Type -, Capacity 15.5 cu in, Material Galvanized Steel, Number of 1/2 In. Back Knockouts 0, Number of 1/2 In. Side Knockouts 2, Clamp Type NM-B, Nominal Depth 1 1/2 in, Nominal Length 4 in, Nominal Width 4 in, Color Silver, Standards UL
graingerSKU: 2DDB2, mscSKU: , zoro_no: G0671982, mongo_id: 65bbe8e222d7a989a991f4d2

Web Price

$12.74 / each

Qty

Product Details

Actual Depth 2.132 in

Box Type Octagon

Capacity 15.5 cu. in.

Certified Listed UL Listed

Clamp Type NM-B

Color Silver

Country of Origin (subject to change) United States

Cubic Capacity 15.5 cu.in

Depth 1.5 in

Drawn or Welded Drawn

Each - Width 14.500 in

Features Included bar hanger is adjustable 16-24 in.; 10 lb. max load recommended on 24 in. center; When used on 16 in. center, rated to support up to 50 lb light fixture; Fixture bar hanger allows box to be located anywhere along length of bar; Self-griping non-metallic sheathed cable entry clamps are integral part of the box; Self-contained metallic grounding strap; Supplied with two 1/2 in. knockouts; 37.0 cu. in. capacity

Fixture Lbs. 10 lb.

Height 3.563 in

Knockouts 1/2 in

Material Galvanized steel

Nominal Depth 1-1/2

Nominal Length 4

Nominal Width 4

Number of 1/2 In. Back Knockouts 0

Number of 1/2 In. Side Knockouts 2

Number of Gang 2-Gang

Number of Gangs 2

Package Quantity 1
