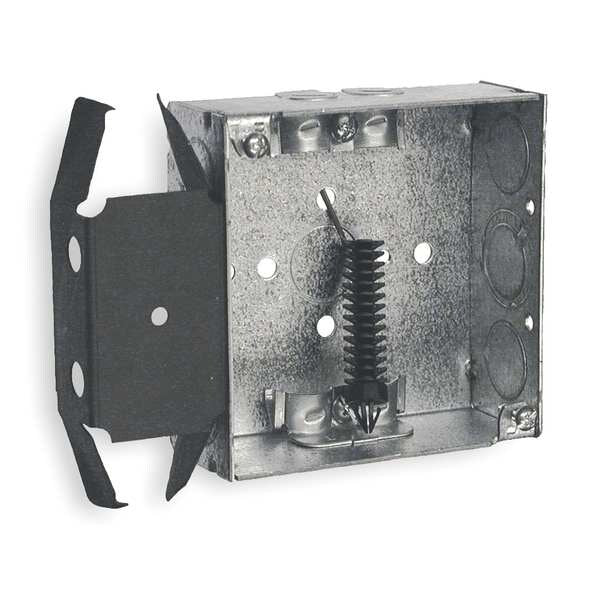

Electrical Box, Square with Bracket

SKU
Brand Raco
Categories Electric and Cordless Tools
Description Electrical Box, Box Type Square with Bracket, Number of Gangs 2, Bracket Type BOX-LOC Flush, Capacity 21 cu in, Material Steel, Number of 1/2 In. Back Knockouts 1, Number of 1/2 In. Side Knockouts 3, Clamp Type NM-B, Number of 3/4 In. Side Knockouts 1, Nominal Depth 1 1/2 in, Nominal Length 4 in, Nominal Width 4 in, Color Silver, Standards File E195978, UL 514-A Listed
graingerSKU: 1RVU9, mscSKU: , zoro_no: G3361477, mongo_id: 65bbe8479a749db822782027

Web Price

$10.19 / each

Qty

Product Details

Actual Depth 2.115 in

Box Type Square with Bracket

Bracket Type BOX-LOC Flush

Capacity 21.0 cu. in.

Certified Listed UL Listed

Clamp Type NM-B

Collection Name BOX-LOCÃÂ®

Color Silver

Country of Origin (subject to change) United States

Cubic Capacity 21.0 cu.in

Depth 1.5 in

Drawn or Welded Welded

Each - Width 5.625 in

Features Welded steel construction with MS BOX-LOCÃÂ® bracket that can position box on either side of stud and nonmetallic sheathed cable clamps; 4 in. square x 1-1/2 in. deep; BOX-LOCÃÂ® Bracket is a snap to install. Place the bracket on the open side of the stud first. Slots in the bracket engage the lip of the stud; Provided with far-side support, model #978; TKOÃÂ® Knockouts allows for design and installation flexibility; Supplied with five 1/2 in. and two 1/2-3/4 in. TKOÃÂ® knockouts; Combination Phillips/slotted screw heads; 21.0 cu. in. capacity; Acceptable for use in 2-hour fire rated walls

Fire Resistance Yes

Height 4.5 in

Knockouts 1/2 in;1/2 - 3/4 in Combination (TKO)

Material Steel

Nominal Depth 1-1/2

Nominal Length 4

Nominal Width 4

Number of 1/2 In. Back Knockouts 1

Number of 1/2 In. Side Knockouts 3

Number of 3/4 Side Knockouts 1

Number of Gang 2-Gang

Number of Gang(s) 2-Gang
