Home / Electrical Box, Switch, 3x2x2-1/2 in.

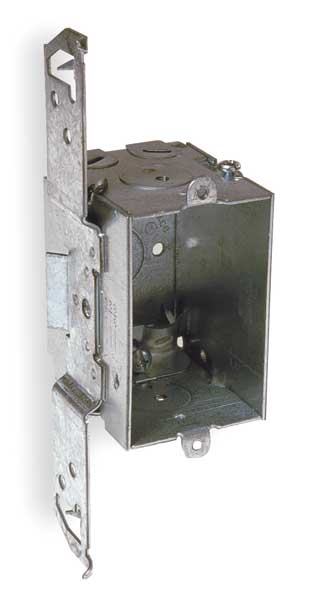

Electrical Box, Switch, 3x2x2-1/2 in.

SKU
Brand Raco
Categories Electric and Cordless Tools
Description Electrical Box, Box Type Switch, Number of Gangs 1, Bracket Type TS, 1/2 in Setback, Capacity 12.5 cu in, Material Galvanized Zinc, Number of 1/2 In. Back Knockouts 1, Number of 1/2 In. Side Knockouts 0, Clamp Type NM-B, Nominal Depth 2 1/2 in, Nominal Length 3 in, Nominal Width 2 in, Color Silver, Standards UL File E195978
graingerSKU: , mscSKU: , zoro_no: G0355686, mongo_id: 65bbe5fa3aaddbd5a9ffc517

Web Price

$6.49 / each

Qty

Product Details

Actual Depth 2.749 in

Box Type Switch

Bracket Setback 0.5

Bracket Type TS, 1/2 Setback

Capacity 12.5 cu. in.

Certified Listed UL Listed

Clamp Type NM-B

Color Silver

Country of Origin (subject to change) Mexico

Cubic Capacity 12.5 cu.in

Depth 2.5 in

Each - Width 2.500 in

Ends Cable 4

Features 3 in. x 2 in., 2-1/2 in. deep; Gangable switch boxes offer the option of constructing a box to hold two or more devices; Includes TS side-mount bracket with gauging tabs and recessed nailing spurs; L clamps provided for non-metallic sheathed cable (NMSC); Supplied with three 1/2 in knockouts; 12.5 cu. in. capacity; Acceptable for use in 2-hour fire rated walls

Fire Resistance Yes

Gangable Yes

Height 7.003 in

Knockouts 1/2 in

Material Galvanized Zinc

Nominal Depth 2-1/2

Nominal Length 3

Nominal Width 2

Number of 1/2 In. Back Knockouts 1

Number of 1/2 In. Side Knockouts 0

Number of Gang 1-Gang

Number of Gang(s) 1-Gang
